Why Pipe Size Alone Is Not Enough for Flow Meter Selection: Flow Range, Velocity and Technology Matters

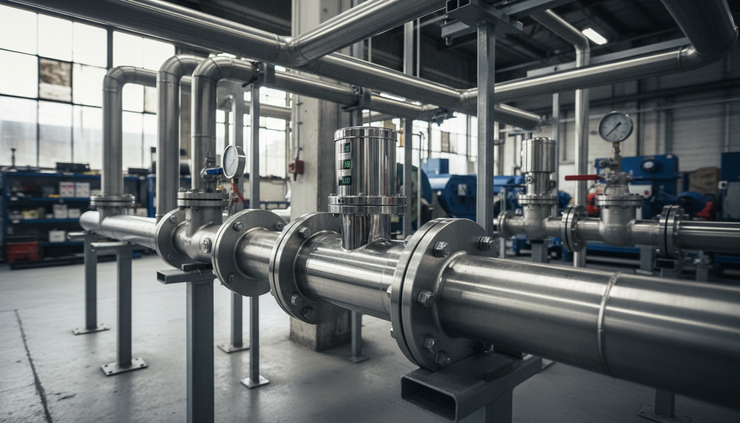

A flow meter can have the right flange size and still be the wrong instrument.
That is one of the most common traps in industrial flow meter selection. A site team measures the line, sees DN80 or 3 in pipework, and asks for a DN80 or 3 in meter. On paper, it sounds logical. In practice, the meter may be too large to read accurately at low flow, the velocity may fall below the technology’s working range, or the installation may create avoidable pressure loss.
Pipe size matters, but it is only the starting point. The better question is:
What is the minimum, normal, and maximum flow through the pipe, and what velocity does that create through the meter?
That is where the correct meter size and meter technology become clearer.
Pipe diameter tells only part of the story
Pipe diameter tells you the physical connection size. It does not tell you how much liquid, gas, steam, or slurry moves through the line.
Two systems can use the same pipe size but have completely different flow conditions.
For example:
Pipe size | Application | Typical flow behaviour |
DN50, 2 in | Chemical dosing transfer | Long periods of low flow with short batch fills |
DN50, 2 in | Cooling water loop | Steady moderate flow for most of the day |
DN50, 2 in | Cleaning-in-place return | Variable flow, possible air entrainment, and high short-term peaks |
All three use the same pipe size. They may need different flow meter sizes, different meter technologies, and different installation details.
A flow meter works by detecting some change caused by moving fluid. That could be induced voltage, turbine rotation, ultrasonic transit time, differential pressure, vortex shedding, tube vibration, or heat transfer. Each principle has a working range. If the velocity is too low, the signal can become weak or unstable. If the velocity is too high, pressure loss, wear, noise, vibration, or measurement limits can become a problem.
That is why flow range must be checked alongside the pipe diameter.
Flow range turns pipe size into a useful selection
A good selection starts with three numbers:
Minimum flow
Normal operating flow
Maximum flow
The minimum flow is especially important. It often gets overlooked because process teams naturally think about maximum capacity. Yet many flow meter complaints happen at the low end.
Common low-flow problems include:
The meter shows zero even though there is flow.
Readings jump around at low demand.
Batch totals are inconsistent.
A dosing line cannot prove small transfers.
The meter performs well during flushing but poorly during normal production.
These are often not “faulty meter” problems. They are selection problems.
If the meter bore is too large for the actual flow, fluid velocity through the measuring section will be low. A low velocity may sit below the meter’s stated measuring range. Even if the instrument can technically detect the flow, uncertainty can be higher near the bottom of the range.
A simple example helps.
Imagine a DN80, 3 in process line that was built for future capacity. At maximum production, the line might carry a healthy flow. For most of the year, though, it runs at only 15 to 25 percent of that design value. A full-bore DN80 flow meter may see very low velocity during normal operation. The result can be poor low-flow measurement.
In that case, a smaller meter installed with reducers may work better than a meter that matches the pipe size.
Oversized meters often cause low-flow measurement problems
Oversizing sounds safe. It gives plenty of capacity. It feels less restrictive. It avoids the fear of pressure drop.
But oversized flow meters can create real measurement issues.
A meter that is too large may have:
Weak signal at low velocity
Poor repeatability at the bottom of the range
Reduced accuracy during start-up and shutdown
Larger measurement uncertainty during partial-load operation
Higher purchase cost than needed
Longer face-to-face length or more difficult installation requirements
This happens most often when pipework has been sized for hydraulic convenience rather than measurement quality. Engineers may choose a larger line to reduce pumping losses, allow future expansion, or match existing plant standards. Those reasons can be valid. The flow meter still needs to measure the real process flow, not the pipe’s theoretical capacity.
Consider a water transfer line that uses DN100, 4 in pipe. The actual process normally runs at low flow, with only occasional high-demand operation. A DN100 magnetic flow meter might not see enough velocity during normal use. A DN50 or DN65 meter installed in a reduced section may keep the fluid velocity in a better measuring range.
The pipe remains DN100 before and after the meter. The measurement section is sized for the flow.
That single change can make the difference between a meter that technically fits and a meter that gives useful data every day.
Velocity is the link between flow and meter performance
Flow rate and pipe size combine to create velocity. Velocity is the speed of the fluid through the pipe or meter bore.
For liquids, very low velocity can make some meters less responsive. Very high velocity can create other problems, such as pressure loss, erosion, vibration, or noise. For gases and steam, velocity has an even stronger effect because density, pressure, and temperature influence the measured volume and mass.
Meter manufacturers usually publish recommended velocity ranges or flow ranges for each meter size. These ranges are not decorative. They help match the instrument to the real operating condition.
When reviewing velocity, look at the full operating profile:
Start-up flow
Does the flow ramp up slowly from zero?
Normal flow
Where does the process spend most of its time?
Peak flow
How often does it happen, and for how long?
Turndown
What is the ratio between maximum and minimum measurable flow?
A wide flow range can narrow the list of suitable technologies. If a system needs accurate measurement at both very low and much higher flows, a technology with good turndown may be needed. In other cases, the better answer may be two meters, a bypass arrangement, or a smaller meter size selected around the normal operating point.
Reducers can be the right answer when used correctly
Reducers often make customers nervous. The concern is understandable. A smaller meter section sounds like a restriction. It can be, but that does not mean it is wrong.

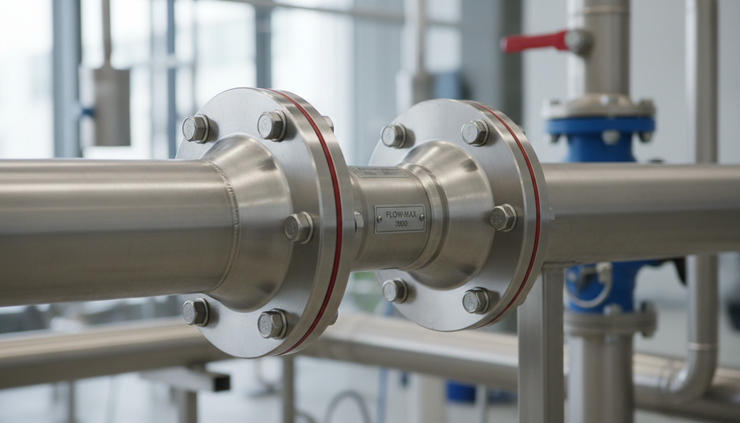

A reducer is often used to install a smaller flow meter in a larger pipe. The goal is to increase velocity through the meter so the instrument operates within its recommended range.
For example, a DN100 line may be reduced to DN50 through the meter and expanded back to DN100 after it. If the flow range suits the DN50 meter, this can improve low-flow measurement greatly.
Good reducer design matters. The installation should account for:
Straight pipe requirements before and after the meter
Reducer angle and flow disturbance
Air pockets in liquid lines
Drainage in horizontal installations
Sediment or solids settling near the reduced section
Maintenance access
Pressure rating and material compatibility
The reducer arrangement should not introduce avoidable turbulence directly at the measuring point. Some meter technologies are more tolerant of disturbed flow than others. Others need longer straight runs to settle the velocity profile.
For horizontal liquid lines, concentric reducers may be fine in many cases, but eccentric reducers can help manage air or drainage depending on pipe orientation and process conditions. The right detail depends on the fluid and the meter type.
Reducers are not a shortcut. They are a valid engineering choice when they are sized and installed with care.
Pressure loss should be checked, not guessed

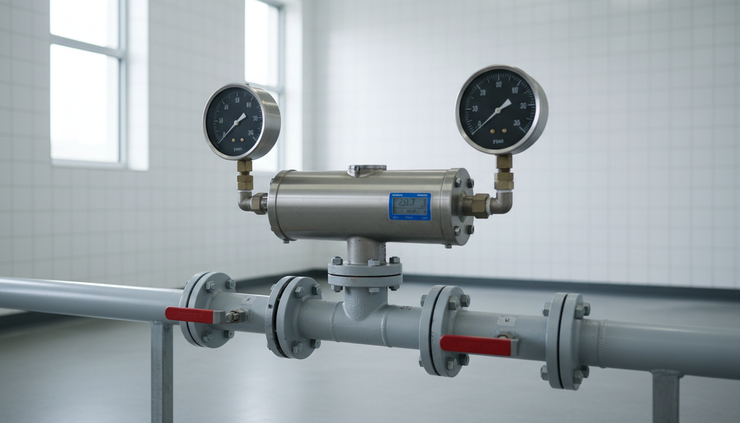

Every restriction in a pipe can create pressure loss. A smaller flow meter, reducers, elbows, valves, strainers, and fittings all add resistance.
That does not mean a reduced meter section should be avoided. It means the pressure loss must be checked against the process.
Ask these practical questions:
Is there enough pump head available?
Will the pressure drop affect downstream equipment?
Could the reduced section increase cavitation risk?
Is the fluid viscous, sticky, abrasive, or sensitive to shear?
Does the flow meter itself create pressure loss?
Is the line gravity-fed or pump-fed?
Is the process continuous or batch-based?
Some flow meter technologies have very low pressure loss because the bore is open. Magnetic flow meters and some ultrasonic meters are common examples for suitable liquids. Other technologies, such as differential pressure meters, positive displacement meters, turbine meters, and some Coriolis meters, can create more pressure loss depending on size and design.
The pressure loss may still be acceptable. For some duties, added pressure drop is minor compared with the benefit of accurate measurement. For other duties, such as low-pressure gravity lines or pump-limited systems, it can become a deciding factor.
This is why selection should never be based on pipe size alone. The best choice balances measurement quality, pressure loss, installation conditions, and process risk.
Meter technology changes the sizing decision

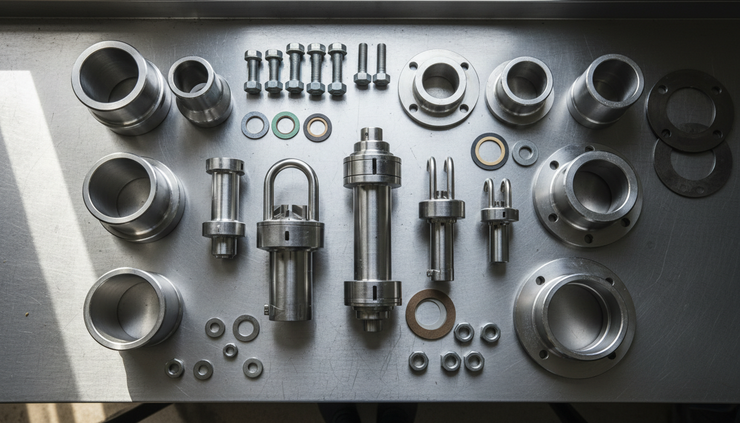

The same pipe and flow range can lead to different recommendations depending on the meter technology. Each type responds to flow in its own way.
Magnetic flow meters suit conductive liquids
Magnetic flow meters are widely used for water, wastewater, chemicals, slurries, and other conductive liquids. They have no moving parts and usually offer low pressure loss.
They need a conductive liquid and a full pipe. Very low velocity can reduce measurement confidence, so sizing still matters. In oversized pipework, a smaller mag meter with reducers can be a strong solution.
Ultrasonic flow meters can be useful where low pressure loss matters
Ultrasonic meters measure using sound signals. Inline versions and clamp-on versions are both available for different duties.
They can be attractive where pressure loss must stay low. Clamp-on meters can also help where cutting the pipe is difficult. Performance depends on pipe condition, fluid properties, installation quality, and flow profile.
For very low flow or difficult fluids, the application should be checked carefully.
Turbine meters need enough velocity and clean flow
Turbine meters use the fluid to spin a rotor. They can be accurate in suitable clean liquids and gases, but they need enough velocity to turn the rotor consistently.
At low flow, friction and bearing condition can affect performance. Strainers are often used to protect the meter, but strainers add pressure loss and maintenance needs.
Vortex meters need a minimum velocity
Vortex meters measure vortices shed from a bluff body. They are common for steam, gases, and some liquids.
They usually need a minimum velocity and a suitable Reynolds number to form a stable signal. They can be a poor fit for very low flow in a large line. If the pipe is oversized, a reduced meter run may be needed, but pressure loss and straight run requirements must be reviewed.
Coriolis meters measure mass flow directly
Coriolis meters measure mass flow and density. They can perform very well across many fluids and are valuable for dosing, batching, and high-value products.
They can be heavier and more expensive, especially in larger sizes. Pressure loss may also matter, particularly with viscous fluids or high flow. In many cases, a smaller Coriolis meter sized around the true flow range is better than matching the main pipe diameter.
Positive displacement meters can help at low flow
Positive displacement meters measure known volumes passing through internal chambers. They can be strong performers for some low-flow and viscous liquid applications.
They do introduce moving parts and pressure drop. Fluid cleanliness, viscosity, wear, and maintenance all need attention.
Thermal mass meters fit many gas flow applications
Thermal mass meters are often used for gases and compressed air. They measure heat loss from a sensor into the flowing gas.
They can measure low flows well in suitable gases, but gas composition, moisture, pressure, temperature, and installation details matter.
The key point is simple. Technology choice and meter size are linked. Treating them separately can lead to the wrong purchase.
Practical examples that show the difference
A large pipe carrying small batches
A plant has a DN80, 3 in line used for batch transfer. The line was installed years ago to allow fast transfers, but most current batches run at much lower flow.
A DN80 meter fits the pipe, but the normal flow sits near the bottom of the meter range. Operators see unstable readings during small batches.
A smaller meter with reducers may lift the velocity into a better measuring range. The result is more reliable batch totals, as long as pressure loss and installation lengths are acceptable.
A cooling loop with a wide operating range
A cooling water line runs continuously. During peak heat load, the flow is high. During normal operation, it is much lower.
A meter selected only for peak flow may perform poorly most of the time. The better selection checks where the process usually runs. If the normal flow is the main measurement need, the meter should be sized to read that well while still handling peaks.
A low-pressure gravity line
A site needs flow measurement on a gravity-fed water line. The pipe is large, and available head is limited.
Reducing the meter size could improve velocity, but the added pressure loss might reduce flow or cause operational problems. In this case, the best answer may be a low-loss technology, a carefully sized full-bore meter, or a different measuring approach.
A compressed air main with variable demand
A compressed air system may have a large header but very low night-time demand. Selecting by pipe size alone can miss leakage monitoring and low-flow consumption.
A gas meter with good low-flow performance and correct pressure and temperature compensation may be needed. The line size still matters, but the useful measurement range matters more.
What to send before buying a flow meter
A good supplier can make a far better recommendation with a few key details. Before ordering, gather as much of the following as possible:
Pipe size and connection type
Minimum, normal, and maximum flow rate
Fluid name and condition
Liquid, gas, steam, slurry, or mixed phase
Temperature and pressure
Viscosity, conductivity, or density if known
Required units and output signal
Accuracy needs
Available straight pipe length
Installation direction
Pumped, gravity-fed, or pressurised system
Any limits on pressure loss
Material compatibility requirements
Hazardous area or hygiene requirements if applicable
Photos of the pipework can also help. A picture often shows valves, bends, reducers, pumps, and access limits that do not appear in a short enquiry.
For the best starting point, send your pipe size and flow range to ProSense Instruments. Include the minimum, normal, and maximum flow if available. The team can then check velocity, pressure loss, installation needs, and meter technology before recommending a suitable option.
The best meter is the one sized for the real process
Pipe diameter is easy to measure, so it often becomes the first selection point. It should not become the only one.
A flow meter must suit the flow range, velocity, fluid, pressure conditions, and installation. Oversized meters can look safe but fail at low flow. Smaller meters with reducers can improve measurement, but pressure loss and straight run details must be checked. Meter technology also changes the answer, because each type has its own strengths and limits.
Before buying, gather the pipe size and the true flow range. That small step can prevent poor low-flow readings, avoid unnecessary cost, and lead to a meter that works in real service, not just on a datasheet.
