How to Choose the Right Pressure Transmitter for Industrial Applications

A pressure transmitter can look like a simple device: one process connection, one electrical output, and a pressure range printed on the label. In practice, choosing the wrong one can lead to drifting readings, nuisance alarms, damaged diaphragms, or a signal that looks accurate on paper but is poor at the pressures that matter most.

The right choice starts with a clear definition of the measurement. What pressure reference is needed? What range will the process normally run at? What fluid touches the sensor? What temperatures, spikes, vibration, and installation limits will the instrument face?

This guide walks through the main selection points for industrial pressure transmitters, with a focus on practical decisions that affect dependable pressure monitoring.

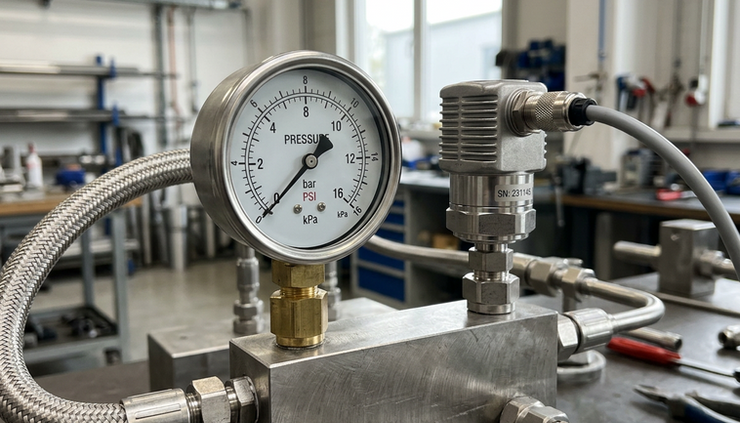

A transmitter is only as dependable as the conditions it was selected for.

Start by defining the pressure reference

The first choice is the pressure reference. This tells the transmitter what it compares the process pressure against. Pick the wrong reference and the instrument may be technically working while giving the wrong value for the application.

Gauge pressure measures against atmospheric pressure

Gauge pressure is measured relative to local atmospheric pressure. A gauge pressure transmitter reads zero when its pressure port is open to atmosphere.

This is common for many industrial tasks, including:

• Pump discharge pressure

• Hydraulic system monitoring

• Filter condition checks

• Air and gas header pressure

• Tank pressure where the tank is vented




Gauge pressure suits applications where the process also relates to atmosphere. For example, a compressed air line is usually described as pressure above atmospheric pressure, not relative to a perfect vacuum.

The practical limitation is that atmospheric pressure changes with weather and elevation. In most gauge applications this does not matter, but it can matter at very low pressure ranges.

Absolute pressure measures against vacuum

Absolute pressure uses a sealed vacuum reference. An absolute transmitter does not read zero when open to air. It reads local atmospheric pressure.

Absolute pressure is used when the true pressure above vacuum matters, such as:

• Vacuum systems

• Barometric pressure measurement

• Distillation and evaporation processes

• Sealed tanks and vessels where gas behaviour depends on absolute pressure




If a process calculation uses gas laws, vapour pressure, or vacuum level, absolute pressure is often the correct choice.

Differential pressure measures the difference between two points

A differential pressure transmitter has two pressure inputs, often labelled high and low. It measures the difference between them.

Differential pressure is commonly used for:

• Flow measurement across an orifice plate or primary element

• Filter and strainer pressure drop

• Tank level using hydrostatic head

• Cleanroom or duct pressure difference

• Heat exchanger monitoring




Differential pressure selection needs extra care because the static line pressure can be much higher than the measured difference. A transmitter might measure a small pressure drop while both sides sit under high line pressure. The device must tolerate both the differential range and the static pressure.

Choose a range that matches the real operating pressure

A common mistake is to select a transmitter based only on the maximum possible pressure. That can protect the device, but it may harm measurement quality.

A transmitter performs best when the normal operating pressure uses a meaningful part of its span. If a process normally runs at 2 bar but the transmitter range is 0 to 100 bar, the live reading sits near the bottom of the span. Any stated accuracy as a percentage of full scale becomes much less helpful.

For example, if an instrument is specified at ±0.5% of full scale:

Transmitter range	Full-scale accuracy band	Error as a share of a 2 bar reading
0 to 10 bar	±0.05 bar	±2.5% of reading
0 to 100 bar	±0.5 bar	±25% of reading

Both instruments may carry the same accuracy statement, but their usefulness at 2 bar is very different.

This is why full-scale accuracy can be misleading at low readings. The smaller, correctly chosen range usually gives better practical measurement, as long as it can handle expected process pressure and overload events.

Before selecting the range, define:

• Normal operating pressure

• Minimum and maximum process pressure

• Start-up and shutdown pressure

• Cleaning or sterilisation pressure

• Pump deadhead pressure

• Pressure spikes and pulsation

• Required alarm and control points




If the process has pressure surges, do not simply oversize the measuring range. A better answer may be a suitable overload rating, snubber, diaphragm seal, or mechanical protection.

Range selection should reflect normal operating pressure, not only the highest possible pressure.

Check pressure limits beyond the measuring span

The measuring range is not the same as the mechanical pressure limit. A transmitter data sheet usually lists several pressure values, and each one matters.

Operating range

This is the calibrated measurement span, such as 0 to 6 bar or -1 to 10 bar. It defines the pressure range that maps to the output signal.

Overload pressure

Overload pressure is the pressure the transmitter can withstand without permanent damage, typically for short events. If a pump can generate brief spikes above the measuring range, the overload rating must cover those conditions.

Do not assume overload pressure can be applied continuously. It is normally a survival limit, not a normal working condition.

Burst pressure

Burst pressure is a safety-related mechanical limit. Exceeding it may cause rupture and process release. The system design should keep real process pressure well below this level by using correct equipment ratings and protection devices.

Static pressure for differential transmitters

For differential transmitters, static pressure rating is critical. Both sides of the transmitter may be exposed to high line pressure, even when the measured differential pressure is small.

A differential transmitter used across a filter, for example, might measure 0 to 500 mbar while the line runs at 20 bar. The transmitter must be rated for that line pressure on both ports.

Match wetted materials to the process fluid

Wetted materials are the parts that contact the process medium. This usually includes the diaphragm, process connection, seals, and sometimes fill fluids or separator materials.

Material compatibility affects both safety and measurement life. A transmitter that works well on clean water may fail quickly in an aggressive chemical, abrasive slurry, or high-temperature oil service.

Common wetted material questions include:

• Is the fluid corrosive?

• Does it contain solids or fibres?

• Will it crystallise, polymerise, or harden?

• Is it hygienic or food-related service?

• Is oxygen compatibility required?

• Are elastomer seals allowed?

• Does the process need a flush diaphragm?

• Will cleaning chemicals contact the transmitter?




Stainless steel is common in many process applications, but it is not universal. Some chemicals require special alloys or non-metallic wetted parts. Slurries or fluids with solids may need a flush diaphragm to avoid blocked pressure ports.

For hygienic processes, the connection and diaphragm design matter as much as material. Crevices, dead legs, and rough surfaces can trap product. In those cases, use sanitary process connections and surface finishes suitable for the application.

A diaphragm seal can isolate the transmitter from difficult process media. It helps with corrosive fluids, high temperatures, viscous products, or applications where the process must not enter a small pressure port. The trade-off is slower response and added temperature effects, especially with long capillaries.

Consider temperature at the process and the electronics

Temperature affects both the mechanical parts and the measurement signal. Data sheets often separate process temperature, ambient temperature, storage temperature, and compensated temperature range.

Process temperature

Process temperature is the temperature of the fluid at the connection. High temperatures can damage diaphragms, seals, electronics, or fill fluids. Low temperatures can stiffen seals or cause process media to freeze.

If the process temperature exceeds the direct-mounted transmitter limit, options include:

• Cooling elements

• Siphons for steam service

• Remote diaphragm seals

• Longer impulse lines

• Heat isolation through mounting position




Steam applications often use a siphon or impulse line filled with condensate to protect the transmitter from direct steam temperature.

Ambient temperature

Ambient temperature is the air temperature around the transmitter housing and electronics. Outdoor installations, hot machinery areas, cold rooms, and exposed pipe racks all place different demands on the device.

Electronics can drift when exposed to temperature extremes. For critical measurements, check the compensated temperature range and temperature effect specification, not just the headline accuracy.

Temperature changes

Fast temperature swings can create short-term measurement errors. This is common when cold systems are cleaned with hot fluid, when outdoor lines see sun exposure, or when batch processes cycle between hot and cold steps.

If the reading feeds a trip function, tight control loop, or custody-related calculation, temperature behaviour deserves close review.

Process and ambient temperatures both influence transmitter selection.

Select the right process connection

The process connection must fit the mechanical installation and suit the medium. Thread size alone is not enough. Pressure rating, sealing method, material, orientation, and access all affect reliability.

Common connection types include:

Connection type	Typical use	Selection note
Threaded connection	General industrial service	Check thread standard, seal type, and installation torque
Flanged connection	Larger pipes and vessels	Match flange rating, facing, and gasket material
Sanitary clamp	Food, beverage, and pharmaceutical service	Use hygienic design with suitable surface finish
Flush diaphragm	Viscous, sticky, or solids-laden media	Reduces blockage risk and makes cleaning easier
Manifold connection	Differential pressure service	Allows isolation, equalisation, and calibration access

Thread compatibility is a frequent source of problems. NPT, BSPP, BSPT, and metric threads may look similar at a glance but seal differently. Parallel threads usually need a gasket or O-ring. Tapered threads seal through thread engagement, often with a suitable sealant.

Avoid placing a small pressure port where solids can settle or where air pockets form. Orientation can make a large difference, especially in liquid, steam, and low-pressure gas service.

Choose an output signal and scale it correctly

The transmitter output must match the receiving device, such as a PLC, indicator, recorder, or control system.

Common outputs include:

• 4 to 20 mA analogue signal

• 4 to 20 mA with HART communication

• 0 to 10 V or other voltage output

• Digital fieldbus or industrial communication protocols

• Switch outputs for local alarms or interlocks




The 4 to 20 mA signal remains common because it handles long cable runs well and gives a live zero. A reading of 4 mA can represent the lower range value, while 20 mA represents the upper range value. A signal below the normal live range can indicate a fault, depending on device configuration.

Correct signal scaling is just as important as correct transmitter selection. A transmitter calibrated for 0 to 10 bar must be scaled the same way in the control system. If the PLC expects 0 to 16 bar, the displayed value and alarms will be wrong.

Check these items during setup:

• Lower range value

• Upper range value

• Engineering units

• Output direction

• Fault current setting

• Damping value

• Local display units

• Alarm thresholds in the receiving system




Damping can calm a noisy reading, but too much damping slows response. Use it carefully where pressure changes need fast detection.

Account for installation effects

A well-selected transmitter can still perform poorly if it is installed badly. Pressure measurement depends on how the process pressure reaches the sensing element.

For liquids, avoid trapped gas in impulse lines. For gases, avoid liquid collecting in low points. For steam, protect the transmitter from heat and keep condensate legs consistent.

Good installation practice includes:

• Mounting the transmitter where vibration is limited

• Supporting impulse lines and capillaries

• Using isolation valves for service access

• Installing manifolds for differential pressure applications

• Keeping impulse lines as short and direct as practical

• Avoiding dead legs where material can settle

• Positioning the transmitter for safe calibration access

• Protecting outdoor devices from weather and water ingress




Impulse lines can introduce errors if they are blocked, unevenly heated, poorly sloped, or filled with the wrong fluid. In low differential pressure applications, even small differences in fluid column height can affect the reading.

Electrical installation also matters. Use the correct cable type, gland, grounding method, and ingress protection. In hazardous areas, the transmitter and wiring method must suit the area classification and protection concept.

Do not judge accuracy by one number

Accuracy statements can hide useful detail. A transmitter may list accuracy as a percentage of full scale, a percentage of span, or a percentage of reading. Some specifications include hysteresis, repeatability, linearity, and temperature effects. Others list them separately.

For real applications, ask what error is acceptable at the actual operating point. A pressure used only for local indication may tolerate more error than a pressure used for shutdown protection, flow calculation, or product quality control.

Look beyond the headline and check:

• Reference accuracy

• Total error band

• Long-term stability

• Temperature effect

• Repeatability

• Calibration interval

• Turndown limits for smart transmitters




Smart transmitters can often be ranged down from a wider sensor limit. This is useful, but turndown has limits. At high turndown ratios, accuracy may no longer match the best-case headline figure.

Final checks confirm that the transmitter, wiring, and control system agree.

A practical selection checklist

Before ordering a transmitter, define the application in writing. A short checklist prevents many common mistakes.

Use these questions as a starting point:

1. What pressure reference is required, gauge, absolute, or differential?

2. What is the normal operating pressure?

3. What are the minimum, maximum, overload, and vacuum conditions?

4. What accuracy is needed at the normal reading?

5. What process fluid will contact the wetted parts?

6. Are corrosion, abrasion, clogging, or hygiene concerns present?

7. What are the process and ambient temperature limits?

8. What process connection and seal type are required?

9. What output signal does the control system need?

10. How will the signal be scaled in the PLC, indicator, or recorder?

11. Is hazardous area approval required?

12. How will the transmitter be isolated, calibrated, and maintained?

The best pressure transmitter is not always the highest-range or highest-cost model. It is the unit that matches the pressure reference, range, material, temperature, connection, signal, and installation conditions of the job.

When those details line up, pressure monitoring becomes easier to trust. Readings are more stable, alarms make more sense, maintenance teams have safer access, and the control system receives a signal that reflects the real process rather than the compromises of a poor selection.
