Ultrasonic vs Radar Level Sensors Which One Is Best for Your Application
- 8 hours ago
- 9 min read
A level sensor can look perfect on paper and fail in the tank. Foam absorbs signals. Vapour weakens echoes. Dust clouds hide the surface. Agitators throw the reading around. Even a sunny afternoon can change the air temperature enough to affect some measurements.
That is why the choice between ultrasonic and radar level sensors is not just a technology preference. It is an application decision.

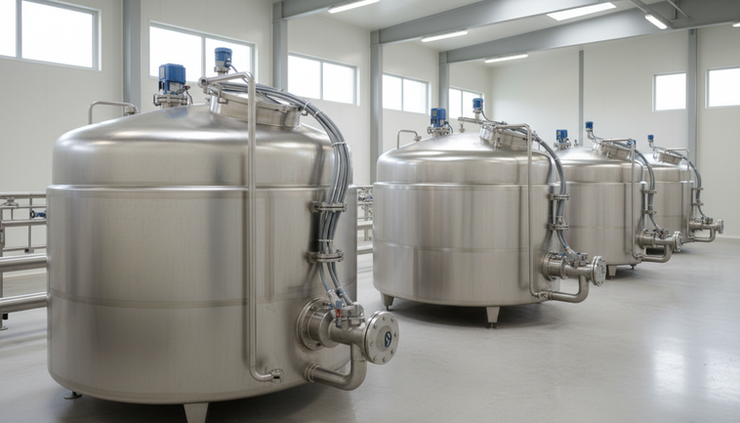

Both are non-contact devices. Both sit above the material and measure distance to the surface. Both can work well in the right setting. The difference is how they “see” the level, and how well that method handles real process conditions.
How ultrasonic level sensors work
Ultrasonic level sensors use sound. The sensor sends a high-frequency acoustic pulse toward the material surface. The pulse reflects, returns to the sensor, and the device calculates level from the time the sound took to travel down and back.
The principle is simple:
Longer return time means the surface is farther away.
Shorter return time means the surface is closer.
The instrument converts that distance into a level reading.
Ultrasonic sensors are common in water, wastewater, sumps, chemical storage, open channels, and simple bulk tanks. They are often chosen because they are relatively affordable, easy to install, and good enough for many clean or moderately difficult services.
Their main weakness is that sound travels through the air space above the material. That air space can change. Temperature, vapour, dust, pressure, foam, and air movement can all affect the sound pulse.
Most quality ultrasonic instruments include temperature compensation, but compensation does not solve every problem. If the air between the sensor and the surface is layered, turbulent, steamy, or filled with particles, the returning echo can become weak or distorted.
How radar level sensors work
Radar level sensors use electromagnetic waves, usually in the microwave range. The sensor sends a radar signal toward the surface and measures the reflected signal. Like ultrasonic, it calculates distance from travel time or frequency change, depending on the radar design.
Because radar uses electromagnetic energy instead of sound, it reacts differently to process conditions. Temperature changes, pressure changes, and many vapours have much less influence on radar than they do on ultrasonic measurement.
That makes radar a strong choice for enclosed vessels, chemical tanks, high-vapour processes, dusty solids, and applications where conditions change often.
Radar still has limits. The material must reflect enough signal. Very low dielectric materials, thick foam, awkward vessel internals, heavy build-up, and badly chosen mounting points can all cause problems. But in difficult non-contact applications, radar usually has more margin than ultrasonic.
The main differences at a glance
Factor | Ultrasonic level sensor | Radar level sensor |
Measurement signal | Sound waves | Microwave radar waves |
Typical strength | Cost-effective and simple | Better in difficult conditions |
Temperature sensitivity | Higher, because sound speed changes | Lower, because radar is far less affected |
Vapour and steam | Can weaken or scatter the signal | Usually handles vapour better |
Dust | Can absorb or scatter sound | Usually better, though heavy dust can still affect readings |
Foam | Often difficult | Often better, but thick foam can still be challenging |
Turbulence | Can cause unstable echoes | Usually more stable with correct setup |
Vacuum or pressure | Can be limited by the headspace conditions | Often better suited to pressure or vacuum vessels |
Installation tolerance | Needs a clear sound path | Also needs a clear path, but narrow-beam radar helps |
Cost | Often lower | Often higher |
The short version is clear: ultrasonic works best when the air path is clean and stable. Radar works best when the process is variable, harsh, or hard to control.
How foam affects ultrasonic and radar sensors
Foam is one of the most common reasons a non-contact measurement fails.
For ultrasonic sensors, foam can be a serious problem because soft foam absorbs sound energy. Instead of reflecting a clean echo, the surface acts like a cushion. The sensor may see a weak return, a false level, or no reliable signal at all.
The effect depends on the foam:
Light, patchy foam may only cause occasional instability.
Dense, wet foam can absorb most of the sound.
Deep foam layers may hide the liquid surface completely.
Radar often performs better with foam, but it is not immune. Radar may reflect from the top of the foam, the liquid below the foam, or a mix of both, depending on the foam density, moisture content, frequency, and the dielectric properties of the material.
That can be useful or troublesome. If the process needs to measure the foam layer itself, radar may need careful selection and setup. If the goal is to measure liquid below foam, the sensor must be able to get enough signal through the foam and back from the true liquid surface.
A practical rule:
For occasional light foam, either technology may work. For persistent foam, thick foam, or process-critical measurement, radar is usually the safer starting point.
How vapour, steam, and condensation affect readings
Vapour is a classic weakness for ultrasonic measurement.
Sound needs a predictable gas path. Vapour can absorb, scatter, or bend the acoustic pulse. Steam is especially difficult because it can create temperature gradients and condensation near the sensor face.
Condensation is another issue. If moisture collects on an ultrasonic transducer, it can dampen the outgoing and returning sound. Some sensors include face designs or cleaning features to reduce this risk, but the basic challenge remains.
Radar is usually much less affected by vapour and steam because microwave signals do not depend on sound speed through air. A radar device can often keep measuring in hot, humid, or chemically vapour-rich headspaces where ultrasonic readings become unstable.
Still, radar installation matters. Heavy condensation on an antenna, product coating, or aggressive chemical build-up can reduce signal quality. In those cases, the antenna style, materials, purge options, and mounting position all matter.
For tanks with strong vapour, solvents, hot liquids, or steam, radar normally has the advantage.
How dust affects ultrasonic and radar sensors
Dust creates similar trouble to vapour, but in dry solids applications.
An ultrasonic pulse can lose energy as it travels through a dusty headspace. Fine particles scatter and absorb sound, especially during filling when dust concentration is highest. The result may be a noisy signal or false echo.
This often shows up in silos, hoppers, grain bins, cement storage, powdered ingredients, plastic pellets with fines, and similar bulk solids.
Radar usually handles dust better. Microwave signals can pass through many dusty atmospheres more effectively than sound. This makes radar a common choice for solids level measurement, especially when filling creates dense dust clouds.
But “better” does not mean “perfect.” Very heavy dust, long ranges, low-reflectivity solids, steep angles of repose, and internal obstructions can all affect radar performance. Higher-frequency radar gives a narrower beam, which can help avoid vessel walls and internal structures, but the full application still needs review.
For clean, settled solids in a small bin, ultrasonic may work. For dusty filling, tall silos, or unreliable echoes, radar is usually the better option.
How turbulence, agitation, and moving surfaces affect readings
A calm, flat liquid surface is easy to measure. Real tanks are often less polite.
Mixers, filling streams, recirculation lines, aeration, boiling, and pumping can create waves and turbulence. These conditions affect both technologies because the surface no longer reflects the signal in one clean direction.
Ultrasonic sensors can struggle when a turbulent surface scatters the sound. The device may lock onto a false echo from the vessel wall, foam, an agitator, or a strong wave. Good signal processing helps, but it cannot fully replace a stable measurement path.
Radar often performs better because the signal is stronger in difficult environments and many radar devices offer narrow beam angles. A narrow beam helps focus on the true surface and avoid internal tank features.
For agitated vessels, placement matters as much as technology. The sensor should avoid:
Direct filling streams
Agitator blades
Large internal pipes
Heavy foam zones
Sidewall interference
Severe vortex areas
If the application has moderate movement, either technology may be acceptable with correct mounting. If the surface is constantly turbulent or mission-critical, radar has the edge.
Changing environmental conditions favour radar
Some applications are easy in the morning and difficult by the afternoon.
Outdoor tanks can see wide temperature swings. Wastewater lift stations may have changing vapour, foam, and surface movement. Chemical tanks may develop intermittent fumes during filling. Solids silos may be clear when idle and dusty during loading.
This is where radar often earns its higher price.
Ultrasonic measurement depends strongly on the condition of the gas space between the sensor and the surface. Even with temperature compensation, fast-changing conditions can make the measurement less stable.
Radar is less sensitive to many of those changes. It can often maintain a reliable reading through shifts in temperature, vapour density, pressure, and dust. That does not remove the need for correct setup, but it gives the instrument more room to cope.
For stable ambient tanks, ultrasonic can be a sensible and economical choice. For variable process conditions, radar is usually the stronger long-term decision.
When ultrasonic is the better choice
Ultrasonic level sensors are not outdated. They are still a good fit for many applications, especially where the process is simple and cost matters.
Choose ultrasonic when the application has:
Clean liquids or simple water-based media
Little or no foam
Minimal vapour or steam
Low dust
A fairly calm surface
Moderate measurement range
Atmospheric or stable headspace conditions
A clear, unobstructed path to the surface
A budget that does not justify radar
Common examples include water storage tanks, wastewater wet wells, simple day tanks, open channels, sumps, and some chemical totes or bulk tanks.
Ultrasonic also makes sense where maintenance teams already know the technology and the cost of occasional signal loss is low. If a temporary unstable reading does not affect safety, production, or inventory control, ultrasonic may be the practical answer.
When radar is the better choice
Radar is the better choice when measurement reliability matters in difficult or changing conditions.
Choose radar when the application has:
Vapour, fumes, steam, or high humidity
Foam that appears often
Dust during filling or discharge
Turbulent or agitated surfaces
Pressure or vacuum conditions
Outdoor temperature swings
Long measurement ranges
Narrow vessels or internal obstructions
Low tolerance for false readings
Safety, batching, inventory, or control requirements
Radar is also a strong option when the cost of a bad reading is high. A more expensive sensor can be cheaper than repeated callouts, overfills, pump dry-running, poor stock control, or lost production time.
This is the core answer to Ultrasonic vs Radar Level Sensors: if the service is clean and predictable, ultrasonic can be the best value. If the service is harsh, changeable, or critical, radar is usually the better investment.
Installation can decide the outcome
A good sensor in the wrong position can still perform badly.
Before choosing either technology, check the vessel and process details. The sensor needs a clear view of the material surface. It should not aim at ladders, pipes, braces, agitators, inlet streams, or rough sidewalls. Nozzle length and diameter matter too, because a poor nozzle can create false echoes before the signal even reaches the product.
For ultrasonic sensors, avoid mounting locations where condensation, wind, foam, or temperature layers will distort the sound path. The sensor face must stay clean and exposed.
For radar sensors, match the antenna and frequency to the vessel geometry and medium. Narrow beams can help avoid obstructions. The right process seal and antenna material can reduce problems with corrosion, coating, and condensation.
Commissioning also matters. False echo mapping, damping settings, empty and full calibration points, and output scaling should match the real process. Many sensor complaints trace back to rushed setup rather than bad technology.
A simple selection guide
Use the process conditions to make the first decision.
Application condition | Best starting point |
Clean water tank with calm surface | Ultrasonic |
Wastewater with light foam and vapour | Radar if reliability is critical, ultrasonic if conditions are mild |
Hot liquid with steam | Radar |
Chemical tank with solvent vapour | Radar |
Dry powder silo with dust during filling | Radar |
Small indoor tank with stable air space | Ultrasonic |
Agitated mixing tank | Radar |
Outdoor tank with large temperature changes | Radar |
Low-cost alarm or rough indication | Ultrasonic |
Process control or inventory measurement | Radar |
The best choice is not always the most advanced device. It is the sensor that matches the real conditions in the vessel.
The takeaway
Ultrasonic and radar level sensors both solve the same basic problem, but they do it in very different ways. Ultrasonic uses sound, so it performs best when the air path is clean, stable, and quiet. Radar uses microwave energy, so it handles vapour, dust, turbulence, pressure changes, and temperature shifts more reliably in many applications.
Choose ultrasonic for simple, clean, low-cost measurements where foam, vapour, dust, and turbulence are limited.
Choose radar when the process is changing, dirty, steamy, dusty, foamy, agitated, or critical to plant operation.
The safest selection starts with the tank conditions, not the catalogue. Look at what happens during filling, emptying, cleaning, seasonal temperature changes, and normal production. The right sensor is the one that keeps reading accurately on the worst day, not just the easy one.
