Turbine Flow Meter – Split Type, DN15–DN100, 4–20mA / RS485 Output, SS
High-accuracy turbine flow meter for clean, low-viscosity liquids. Split design with remote display, ideal for water, fuel, and process monitoring applications.
This turbine flow meter is designed for precise measurement of clean, low-viscosity liquids such as water, oils, fuels, and light chemicals. Using a high-speed rotating turbine mechanism, it delivers accurate and repeatable flow measurement in applications where fluid purity and stable flow conditions are maintained.

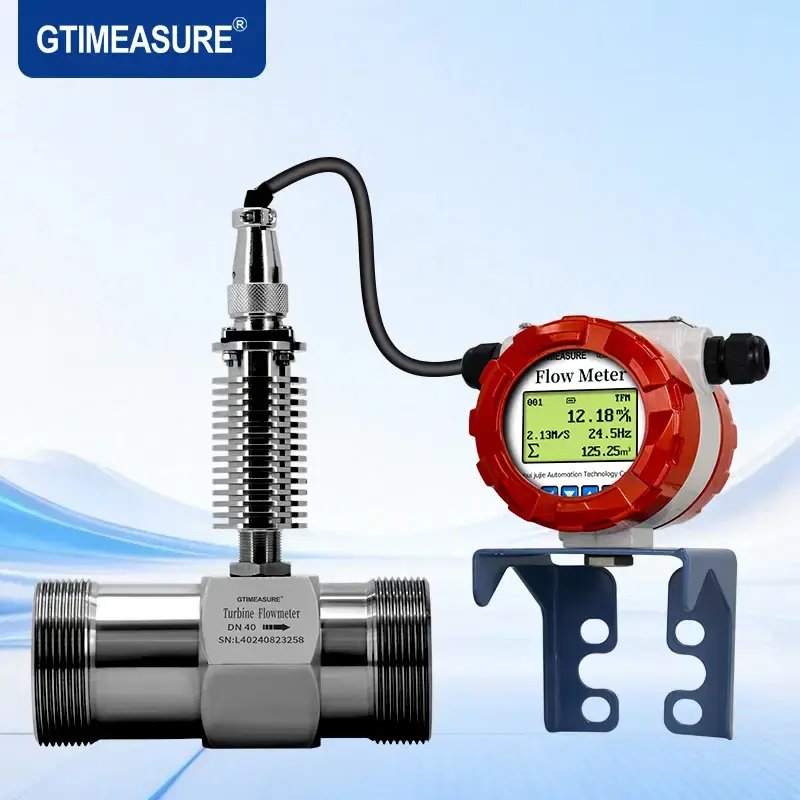

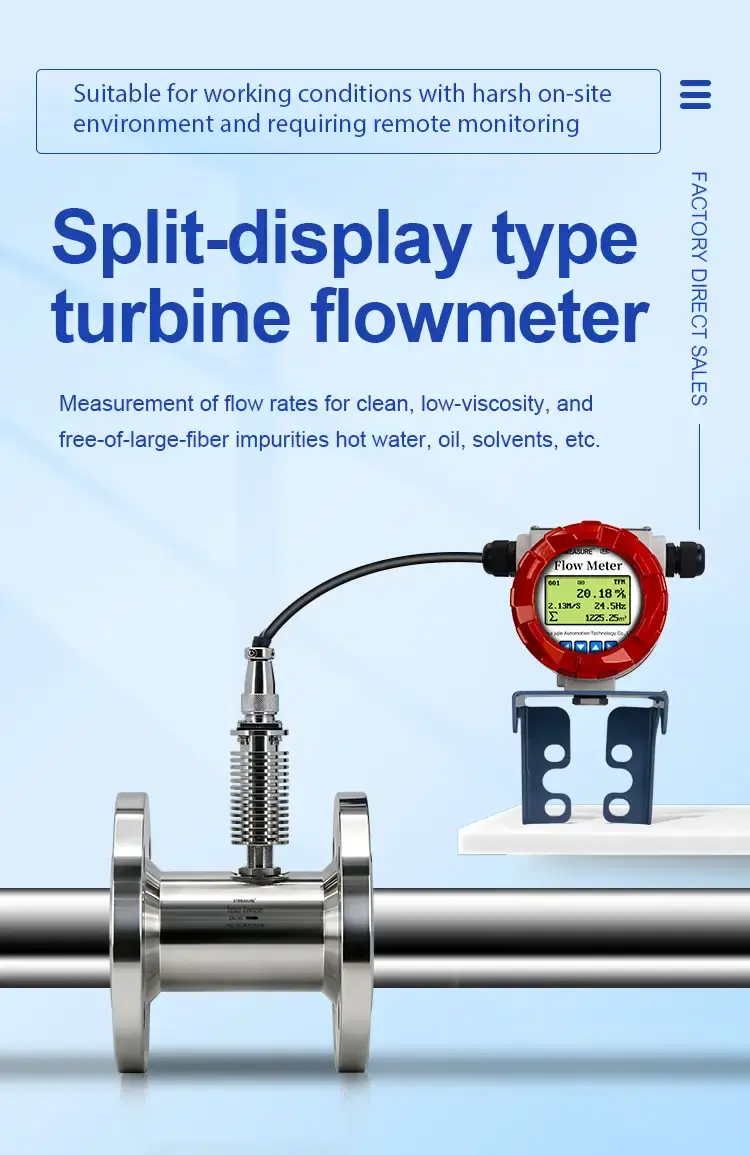

The split-type design separates the sensor body from the display unit, allowing flexible installation in confined or hard-to-access locations while maintaining clear local readout and control.
Constructed from stainless steel, the meter offers excellent durability and corrosion resistance, making it suitable for industrial and commercial environments. It is particularly effective in applications involving fuels such as diesel, kerosene, and gasoline, as well as water and light oils.
With multiple output options including pulse, 4–20mA, and RS485, the meter integrates easily with PLCs, RTUs, SCADA systems, and cloud-based platforms for monitoring, logging, and control.
