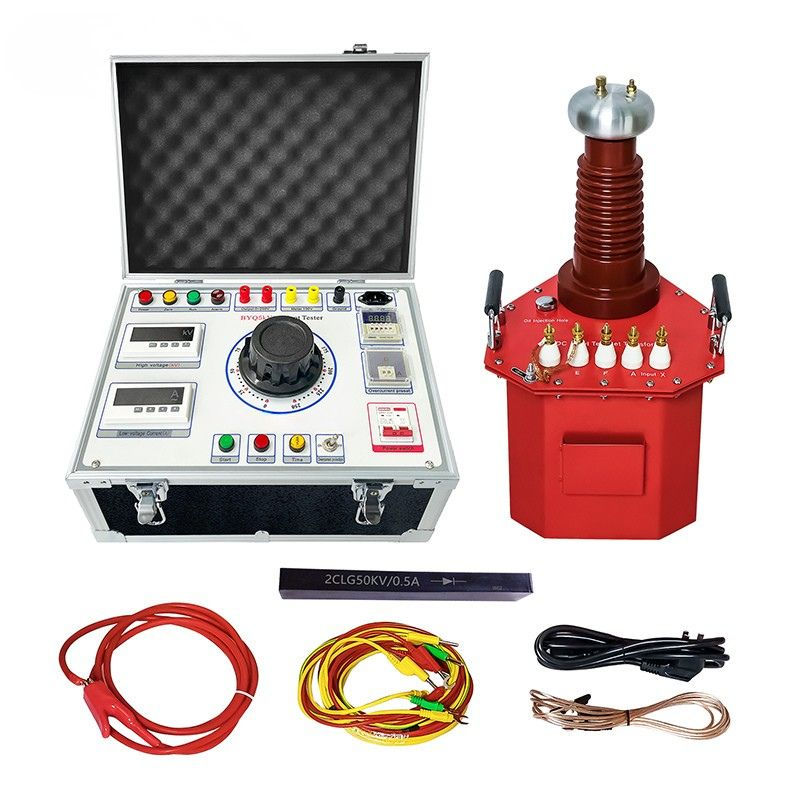

ProSight Automation Hipot Tester (Dry Type) Digital Display
10% off · EOFY 10% Storewide Discount over $100
ProSight Automation Hipot Tester (Dry Type) Digital Display is a dry-type AC high-voltage dielectric testing instrument with a digital display for accurate voltage measurement and control. It is primarily used to perform insulation withstand voltage tests on electrical equipment and components. Featuring a 50kV output, 3kVA capacity, and portable control console, it delivers reliable, safe, and efficient high-voltage testing.
ProSight Automation Hipot Tester (Dry Type) Digital Display is a professional high-voltage dielectric withstand testing system designed to evaluate the insulation integrity of electrical equipment. It generates controlled AC high voltage to determine whether insulation materials can safely withstand operating and overvoltage conditions without electrical breakdown.

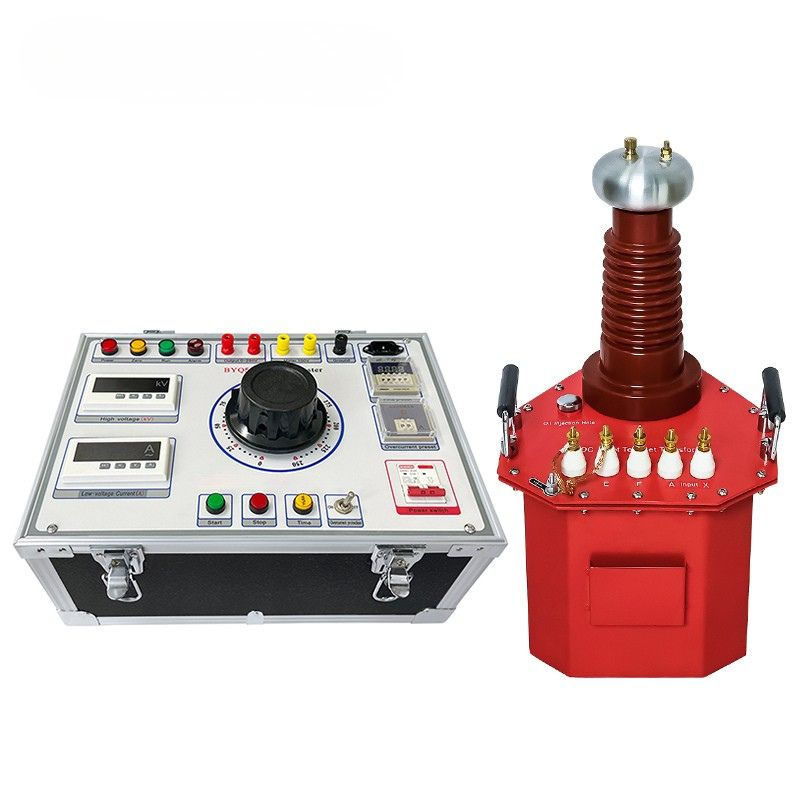

The system consists of a dry-type high-voltage transformer and a digital control console that enables operators to gradually increase, monitor, and regulate the output voltage during testing. Unlike oil-filled transformers, the dry-type design requires minimal maintenance, is environmentally friendly, and is easier to transport and operate.
During testing, the equipment applies a specified high AC voltage to the test object while monitoring its electrical behavior. If the insulation remains intact without excessive leakage current or breakdown, the equipment successfully passes the dielectric withstand test.
The integrated digital display provides clear voltage readings, improving testing accuracy and allowing operators to safely monitor test conditions in real time. Its compact and portable construction makes it suitable for both laboratory environments and field service applications.
Whether used by electrical manufacturers, maintenance contractors, testing laboratories, or power utilities, the BYQ3kVA Hipot Tester delivers dependable performance, precise voltage control, and enhanced operator safety for high-voltage insulation testing.
How It Works
- Connect the test object to the Hipot Tester.
- Set the required testing voltage and duration.
- Gradually increase the output voltage using the control console.
- Monitor the voltage through the digital display during testing.
- Observe for insulation failure, flashover, or abnormal leakage.
- Record the results and safely discharge the equipment after testing.
Why Choose This Product
- Provides accurate AC dielectric withstand testing up to 50kV
- Dry-type transformer eliminates oil maintenance and leakage risks
- Digital display improves measurement accuracy and visibility
- Stable 3kVA output for reliable testing performance
- Portable control console for convenient transportation
- Suitable for laboratory, production, and field testing
- Improves electrical safety and product quality assurance
- Designed for professional high-voltage testing applications
