SPECIFICATIONS

AC Current: 60mA/600mA/20A
AC Voltage: 6V/60V/600V/1000V
Automatic shutdown: Yes
Battery Included: No
Brand Name: UNI-T
Certification: CE,FCC,RoHS,UL,KC,pse,weee
Continuity: Yes
Counts: 6000
DC Current: 600uA/6mA/60mA/600mA/20A
DC Voltage: 600mV/6V/60V/600V/1000V
DIY Supplies: Electrical
Data hold: Yes
Dimensions: 189x89x53mm
Diode: Yes
Display Type: Digital Display
Frequency: 10MHz/60MHz
High-concerned chemical: None
Is Smart Device: Yes
Low voltage prompt: Yes
Max/Min: Yes
Measuring Capacitance Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF
Measuring Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Model Number: UT89X/XD
On off: Yes
Operating Mode: Auto Range
Origin: Mainland China
Temperature: -40℃ to 1000℃ (-40℉ to 1832℉)
True RMS: Yes

UNI-T UT89X UT89XD Professional Digital Multimeter True RMS AC DC Current Voltmeter Hz Ohm NCV Capacitance Resistance Tester

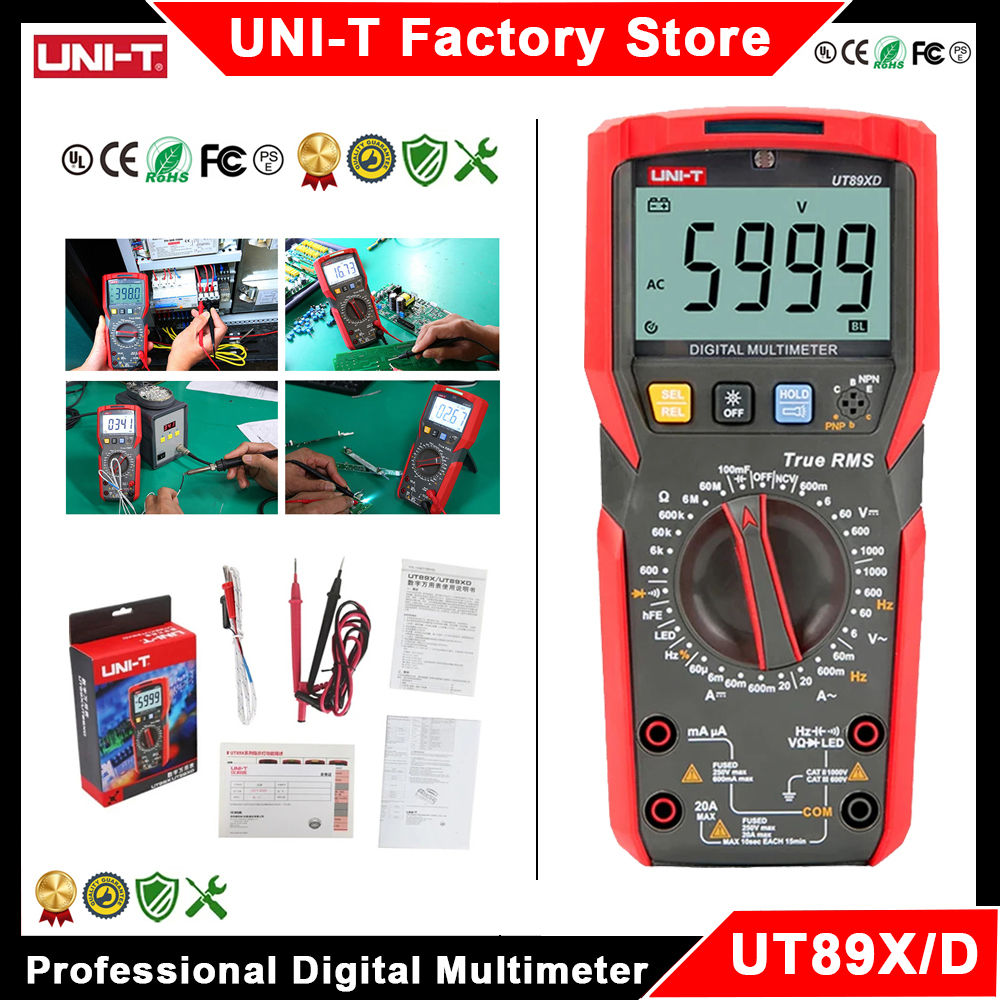

UT89X/UT89XD Digital Multimeter
UT89X/UT89XD is a reliable hand-held 35/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. It attracts users with its bi-color durable case, modern exterior and multiple functions.
