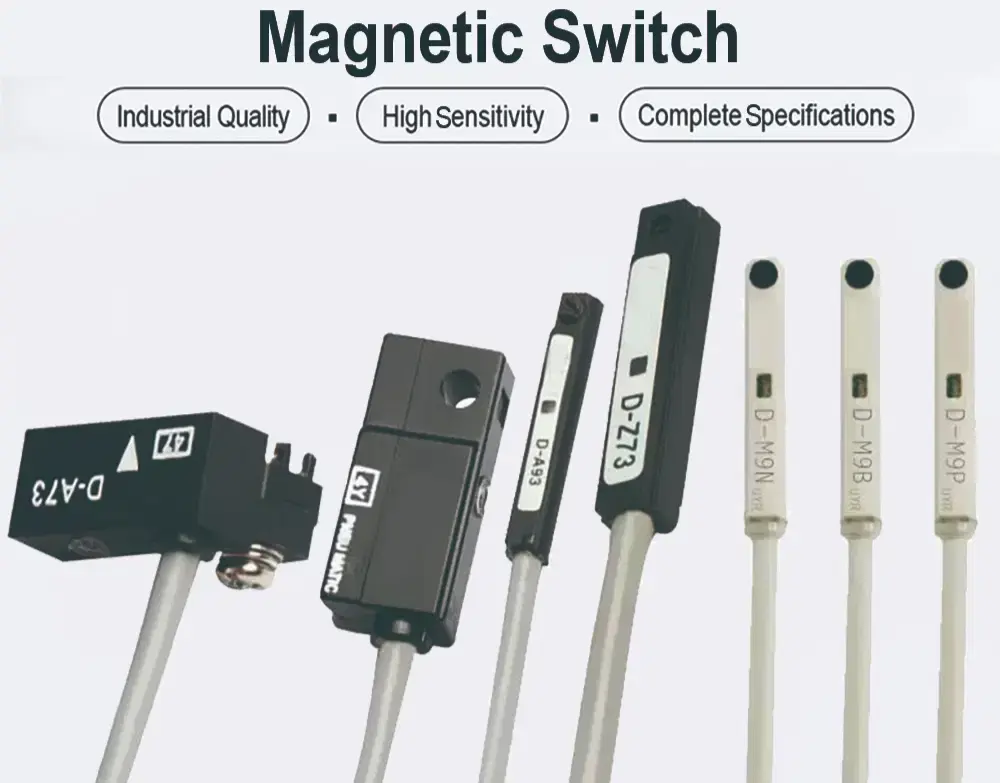

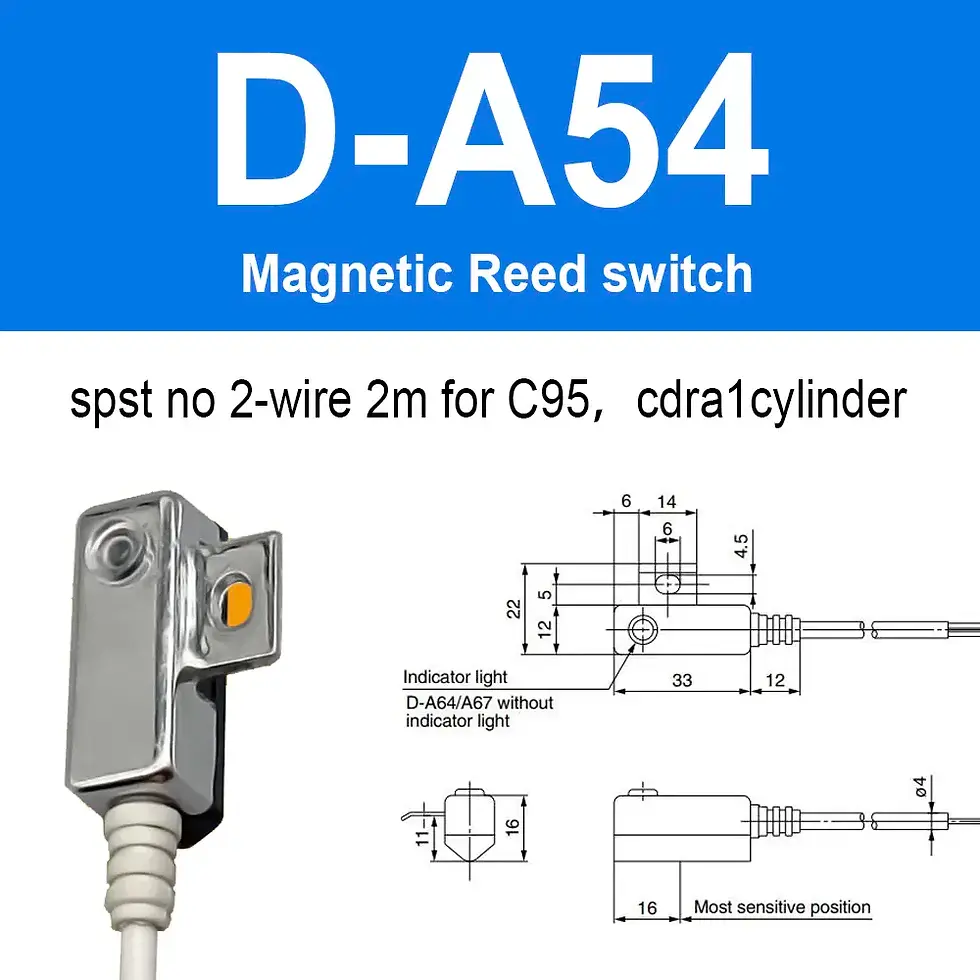

Magnetic Proximity Reed Switch Sensor – 2-Wire / 3-Wire, LED Indicator

Compact magnetic reed switch sensor for reliable position and motion detection.

PriceFrom AU$46.00
Excluding Sales Tax
This magnetic proximity reed switch sensor provides dependable non-contact detection using an internal reed element, making it ideal for position sensing on cylinders, actuators, and moving components. Its compact plastic housing allows easy mounting in confined spaces, while the integrated red LED offers clear visual status indication.
The sensor supports both 2-wire and 3-wire configurations and operates across a wide AC/DC voltage range, enabling flexible integration into industrial control systems. With fast switching capability and low internal voltage drop, it is well suited for automation, machinery monitoring, and general industrial sensing tasks.

  • Sensor Type: Magnetic reed proximity switch

  • Switching Method: Reed switch (solid-state variants available)

  • Wiring Options: 2-wire / 3-wire

  • Operating Voltage:

    • 5–240 V AC/DC

    • 10–28 V DC (2-wire, solid-state variants)

  • Switching Current:

    • 100 mA

    • 50 mA AC (2-wire, solid-state)

  • Maximum Current: 100 mA

  • Internal Voltage Drop:

    • < 2.5 V @ 100 mA

    • Max. 2.65 V @ 50 mA

    • Max. 0.7 V (solid-state)

  • Switching Frequency:

    • Up to 200 Hz

    • Up to 1000 Hz (solid-state variants)

  • Output Indicator: Red LED

  • Cable:

    • Diameter: 2.8 mm or 4.0 mm

    • Type: PVC, 2-core

    • Length: 2 m

  • Housing Material: Plastic

  • Operating Temperature: −10 °C to +70 °C

  • Chemical Content: No high-concern substances

  • Warranty: 12 months

Compliance & Notes

  • Conforms to applicable CE requirements

  • Suitable for position detection on cylinders, actuators, and moving machinery

  • Non-contact magnetic operation minimises mechanical wear

  • All specifications and applications are provided as general guidance only; final suitability, installation, and compliance with local standards remain the responsibility of the installer and end user, and ProSense accepts no liability for incorrect selection or misuse.
