SPECIFICATIONS

Brand Name: ComWinTop
Model Number: CWT-WLS
Origin: Mainland China


12-24VDC H2O Liquid level sensor integrate level transmitter input type water level sensor 4-20ma RS485 output

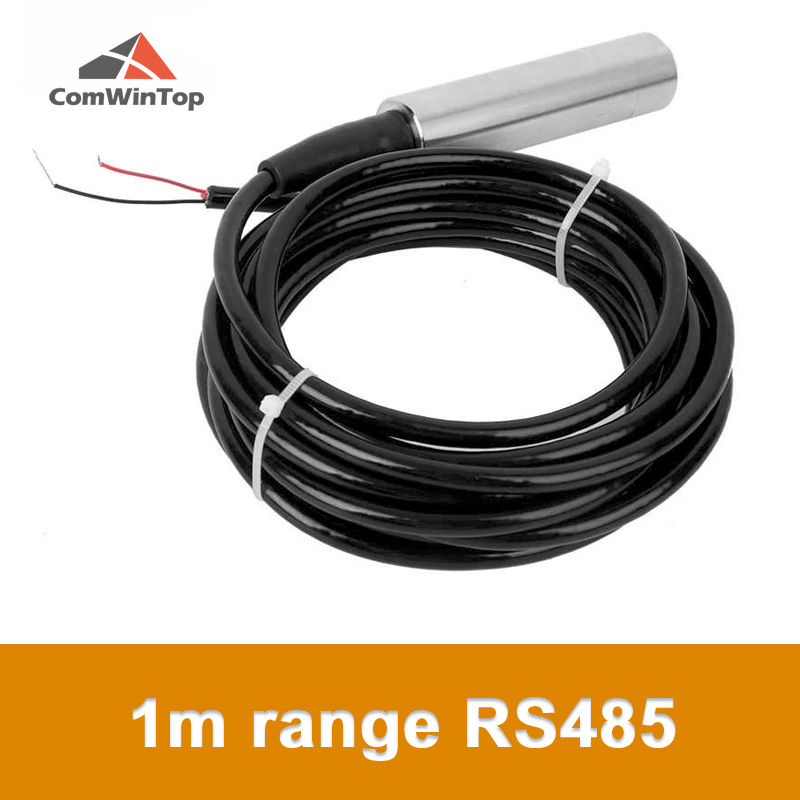

1m range 5m cable
2m range 5m cable
3m range 5m cable

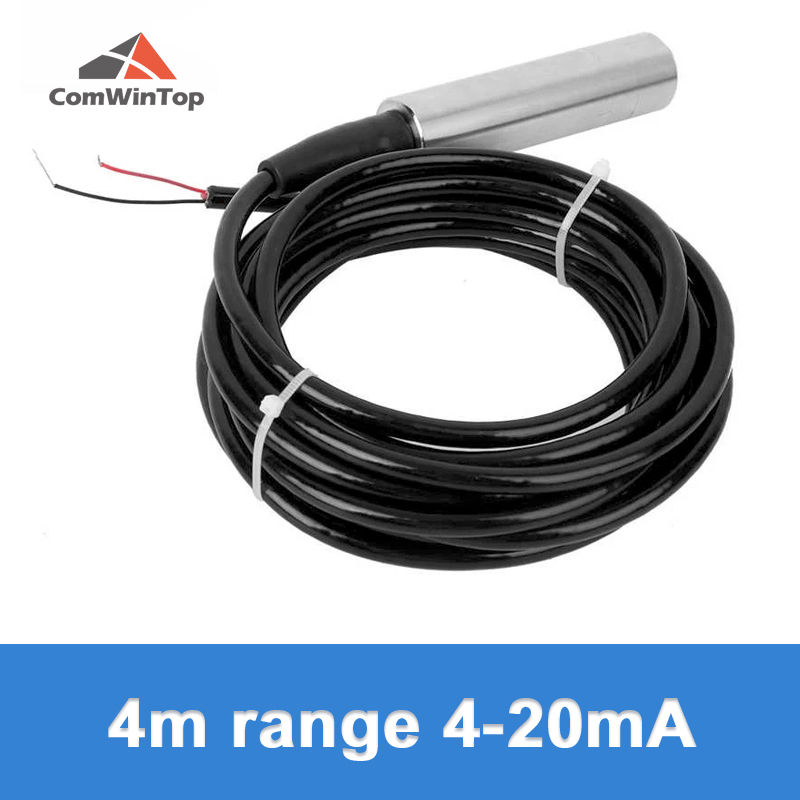

4m range 5m cable
5m range 5m cable
10m range 10m cable

1. Product Overview
The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless-steel housing. The front-end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.

2. Application range
Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places

3. Technical parameters
◆ fully enclosed circuit, with moisture, condensation, anti-leakage function
◆ Range: 0～200 meters
◆ One-piece
◆ Accuracy: 0.5%FS
◆ Appearance size is about 145mm, diameter 28mm

4. Technical parameters:
Measurement form and range 0～1～200mH2O
Allow overload 2 times full scale pressure
Working temperature -20～60°C
Temperature compensation -10～60°C
Storage temperature -40～80°C
Output signal 4-20mA or RS485
Power supply 10~30 VDC (standard voltage 24VDC)
Shell Material 304 Stainless Steel (except we mark
for 316 materials, others are 304)
Cable waterproof breathable cable
Protection class IP68
