Surface Roughness Tester 2 Parameters (Ra, Rz)
Surface Roughness Tester 2 Parameters (Ra, Rz)
Set Includes:
- 1 x Digital Surface Roughness Tester
- 1 x Carrying Case
- 1 x Standard Sensor
- 1 x Standard Sample Plate
- 1 x Operation Manual
- 1 x Screwdriver
- 1 x Adjustable Leg
- 1 x Sheath of Sensor
- Power Adapter (choose 1 from these available Adapter for US, UK, Australia and Europe system)
Product Description
Specifications
Software

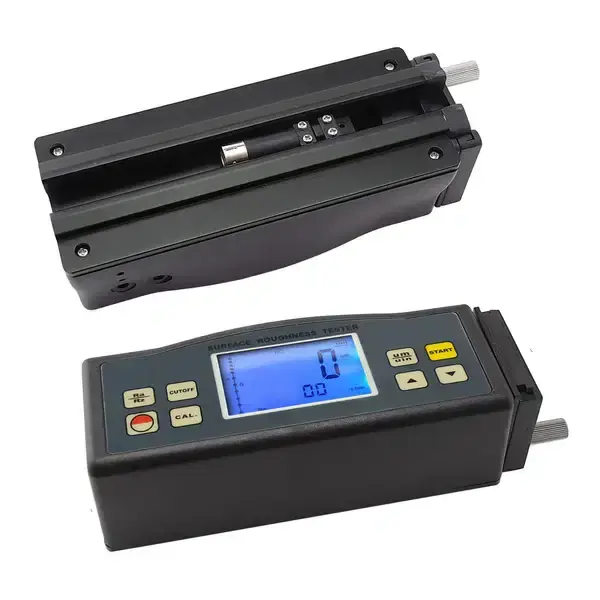

Surface Roughness Tester is design to measure 2 parameters (Ra, Rz) using the built-in Diamond pin probe. It has 4 wave filtering methods (RC, PC-RC,GAUSS & D-P). In addition, said parameters can be downloaded directly to PC via the optional RS-232 CD software & cables. This tester is widely used in production site to measure surface roughness of various machinery-processed parts and calculate corresponding parameters.
Easy measurement can be done by placing the sensor on the surface then uniformly slides along the surface by driving the mechanism inside the tester. The sensor measures the roughness of the surface via the sharp built-in probe.
This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates then outputs the results clearly on LCD.
Features:
- Multiple parameter measurement: Ra, Rz
- Highly sophisticated inductance sensor
- Four wave filtering methods : RC, PC-RC, GAUSS and D-P
- Built-in lithium ion rechargeable battery and control circuit with high capacity
- Selectable Metric (µm) and Imperial (µinch)

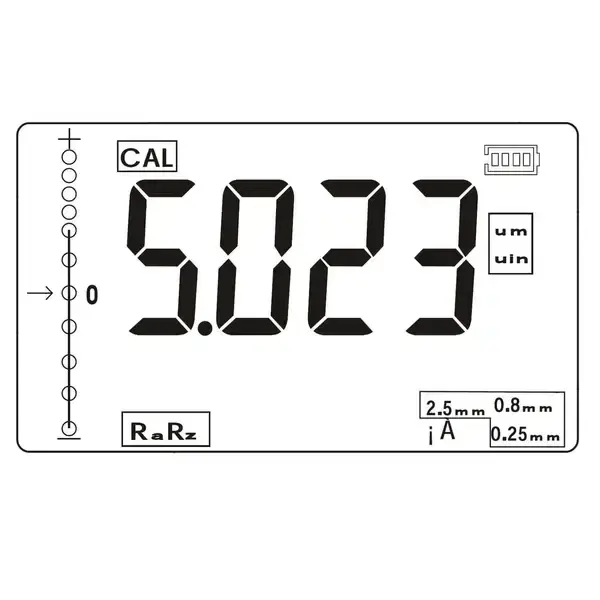

- Exclusive DSP processes to output measurement results on LCD
- Rechargeable battery via USB cable or Power Adapter
