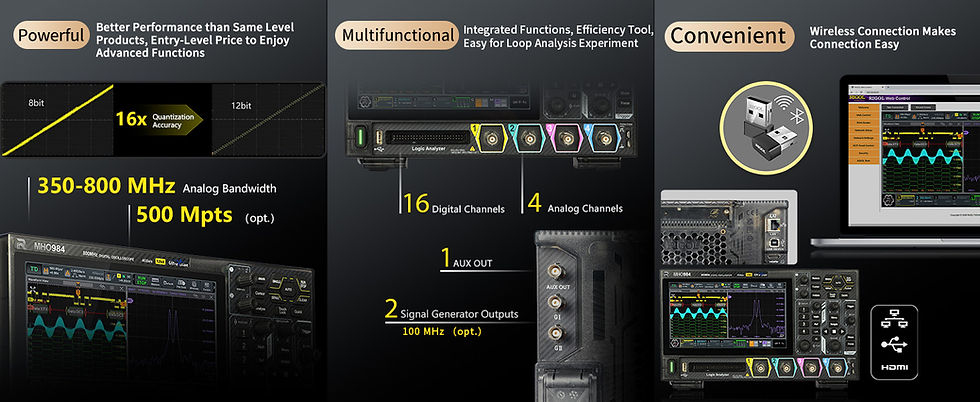

4-Channel Digital Oscilloscope – 4 GSa/s, High-Speed Waveform Capture

This digital oscilloscope is built for engineers, technicians, and laboratories requiring high-speed signal acquisition and detailed waveform analysis.

It features four independent digital channels and a real-time sampling rate of up to 4 GSa/s, allowing accurate capture of fast-changing signals. A high waveform capture rate of up to 1,000,000 waveforms per second improves the ability to detect glitches, intermittent faults, and rare signal events.

The oscilloscope includes a large 7-inch display with a 1024 × 600 resolution, providing clear waveform visibility and intuitive operation during extended testing sessions.

Upgrade options are available for bandwidth expansion and feature activation. When purchased with an upgrade option, all optional components are unpacked and installed prior to shipment.

Key Applications

• Electronic design and debugging

• High-speed digital and analog signal analysis

• Laboratory and R&D testing

• Production verification and fault analysis

• Technical education and training

Key Features

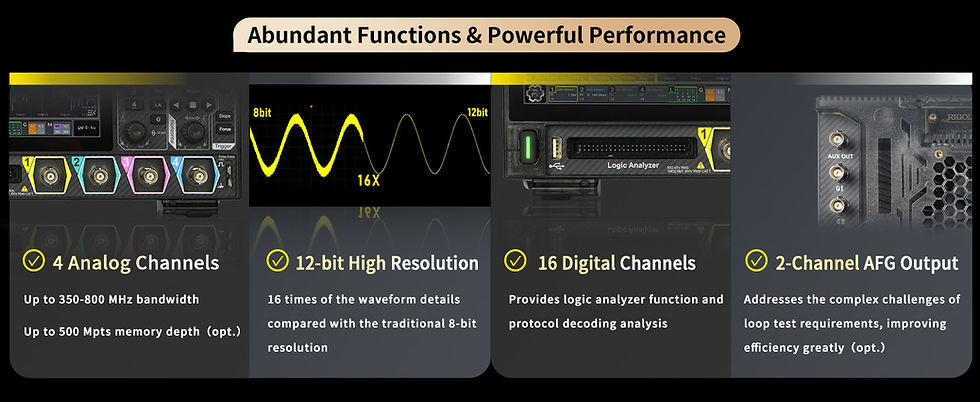

• 4-channel digital oscilloscope

• Real-time sampling rate up to 4 GSa/s

• Waveform capture rate up to 1,000,000 wfm/s

• Large 7-inch display

• High-resolution waveform rendering

• Supports upgrade options with pre-installation
