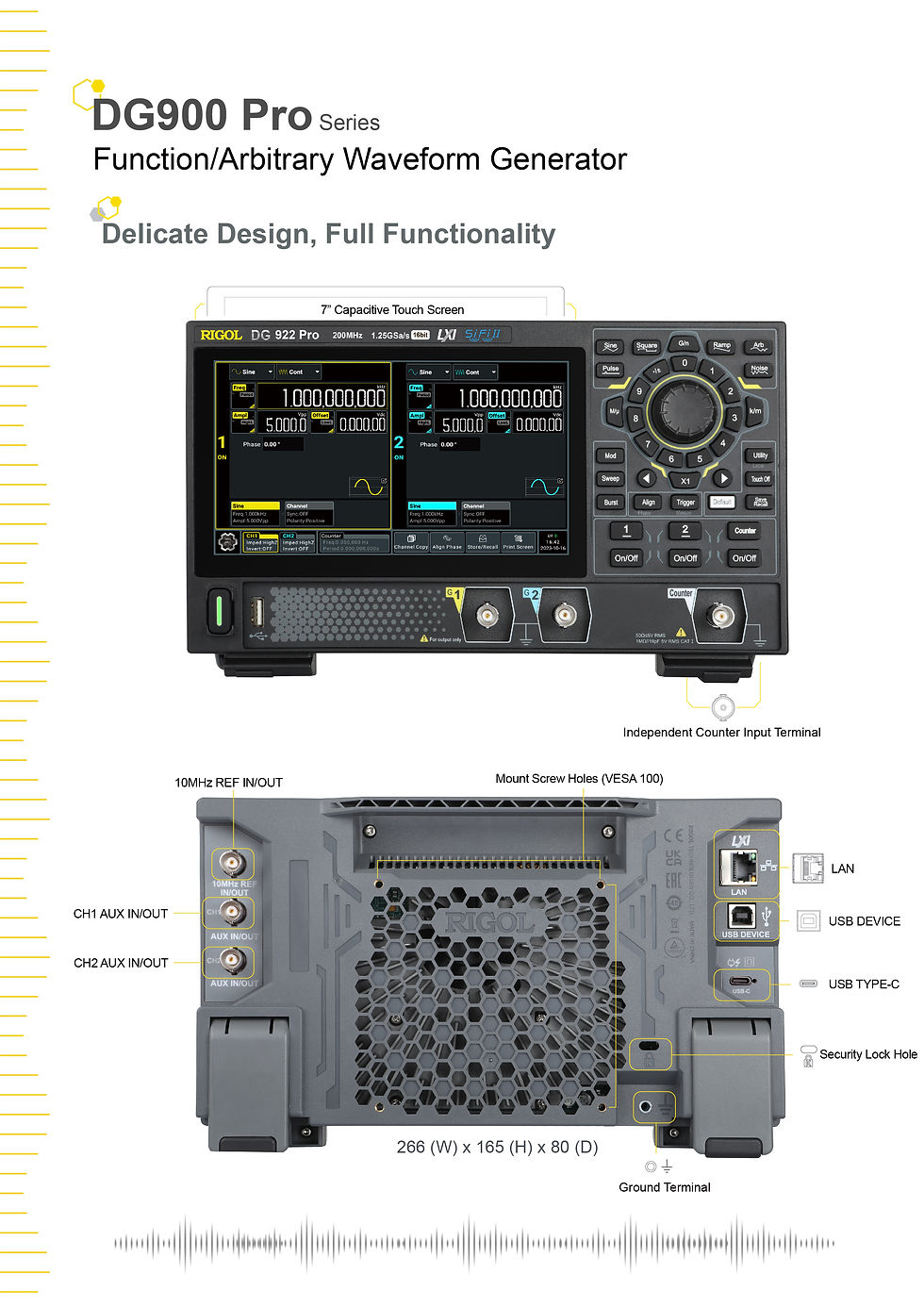

Portable Function and Arbitrary Waveform Generator 70 MHz–200 MHz
High-performance portable function and arbitrary waveform generator with up to 200 MHz output frequency, 1.25 GSa/s sample rate, and advanced waveform generation and modulation capabilities.
This portable function and arbitrary waveform generator is designed for advanced signal generation, testing, and development in laboratory, production, and field environments. It combines multiple signal generation and measurement functions into a single compact instrument, making it suitable for engineers, technicians, and educators.
With a maximum sample rate of 1.25 GSa/s and up to 200 MHz output frequency, the generator delivers high-resolution signals with excellent accuracy and stability. A 16-bit vertical resolution ensures precise waveform output, while deep arbitrary waveform memory supports complex signal creation.
The instrument supports a wide range of built-in functions, including function generation, arbitrary waveform generation, pulse, noise, harmonic generation, modulation, and frequency measurement. USB and LAN interfaces allow for remote operation, while a Type-C power interface enables mobile or field testing using external power sources.
Key Applications
-
Signal generation and simulation
-
Electronic design and debugging
-
Communication and modulation testing
-
Education and laboratory experiments
-
Field and portable test applications
Key Features
-
Dual-channel function and arbitrary waveform generation
-
Maximum output frequency up to 200 MHz
-
Maximum sample rate up to 1.25 GSa/s
-
16-bit vertical resolution
-
Deep arbitrary waveform memory
-
Built-in harmonic generation (up to 20th order)
-
Independent frequency measurement channel up to 1 GHz
-
USB and LAN remote control support
-
Web-based remote control
-
Type-C power input for portable operation
