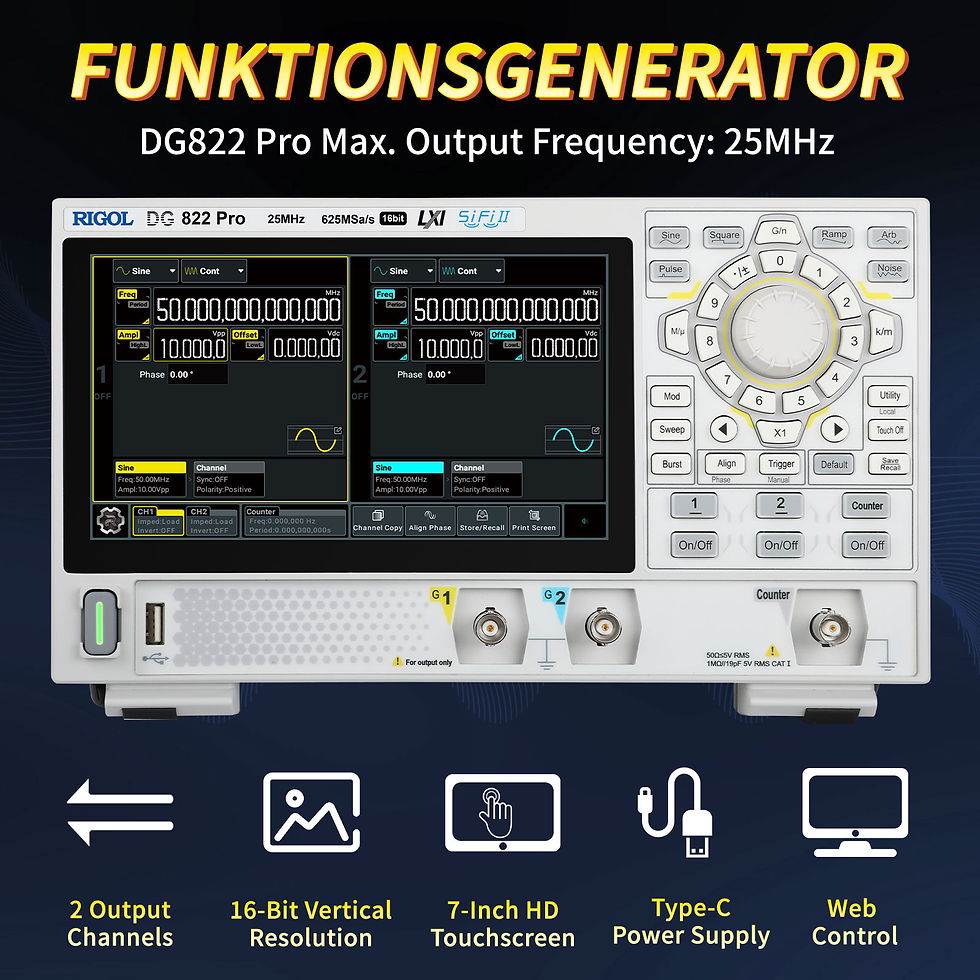

Pro Function and Arbitrary Waveform Generator 25MHz to 50MHz 625MSa/s 16-bit
High-performance function and arbitrary waveform generator offering up to 50 MHz output frequency, 625 MSa/s sample rate, and 16-bit vertical resolution, suitable for laboratory, R&D, education, and field testing applications.
This function and arbitrary waveform generator is designed for precision signal generation across a wide range of applications. With a maximum output frequency of up to 50 MHz and a 625 MSa/s sample rate, it delivers clean, accurate waveforms for analog and digital testing.
Featuring 16-bit vertical resolution and advanced arbitrary waveform editing, the instrument supports complex waveform creation with up to 2 Mpts per channel as standard, expandable to 8 Mpts per channel. Integrated harmonic generation, modulation capabilities, and frequency measurement functions make it a versatile signal source for development, validation, and troubleshooting.
The unit supports USB and LAN remote control and includes a USB-C power interface, allowing operation from mobile power sources for field testing. Web-based control enables convenient remote access and collaboration.
Applications
-
Signal generation for electronics design and debugging
-
Arbitrary waveform testing
-
Education and laboratory experiments
-
Production and functional testing
-
Field and mobile test environments
Key Features
-
Function and arbitrary waveform generation
-
Maximum sample rate: 625 MSa/s
-
Maximum output frequency: up to 50 MHz
-
16-bit vertical resolution
-
Arbitrary waveform length: 2 Mpts per channel standard, 8 Mpts optional
-
Built-in high-order harmonic generator up to 20th order
-
Independent frequency measurement channel up to 500 MHz
-
USB and LAN remote interfaces
-
USB-C power input for mobile operation
-
Web-based remote control support
