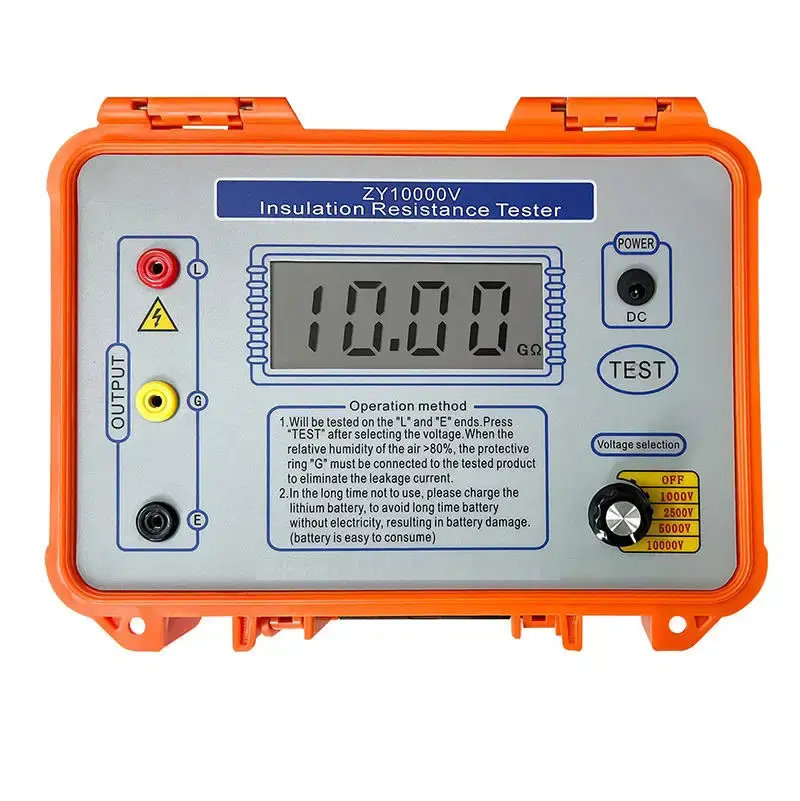

ProSight ZY Series High-Voltage Digital Insulation Resistance Testers
The ProSight ZY Series—including the ZY10000V, ZY5000V, ZY2671B and ZY2671C—provides accurate high-voltage insulation testing for power systems, industrial equipment and utility installations. Featuring PI/DAR analysis, automatic discharge and rugged construction, these professional testers are ideal for commissioning, preventive maintenance and fault diagnosis.
What is the Product?
ProSight High Voltage Digital Insulation Resistance Testers ZY Series ZY10000V, ZY5000V, ZY2671B, and ZY2671C are advanced portable instruments developed for evaluating the insulation condition of high-voltage electrical equipment and installations. These testers are widely used by electrical engineers, utility technicians, maintenance professionals, and commissioning teams to assess insulation performance in motors, transformers, generators, switchgear, high-voltage cables, substations, and power distribution systems.
The ZY10000V, ZY5000V, ZY2671B, and ZY2671C models generate controlled high-voltage DC test signals to measure insulation resistance accurately. In addition to standard insulation testing, selected models support advanced insulation diagnostics, including Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurements, allowing users to evaluate insulation aging, moisture contamination, and overall insulation health.
Designed for field and industrial use, these instruments feature rugged construction, automatic discharge protection, large backlit LCD displays, and user-friendly operation for reliable performance in demanding environments.
How it Works
The tester applies a selectable high-voltage DC test voltage (up to 10,000 V, depending on the model) across the insulation of the equipment being tested. It measures the leakage current flowing through the insulation and calculates the insulation resistance value.
Advanced models automatically perform timed insulation tests to calculate Polarization Index (PI) and Dielectric Absorption Ratio (DAR) values, providing additional insight into insulation quality and long-term condition. After testing, the instrument safely discharges residual voltage from the equipment before allowing the test leads to be removed.
Why Choose This Product
- Professional high-voltage insulation testing up to 10 kV
- High-accuracy insulation resistance measurement
- Suitable for testing large industrial and utility equipment
- Multiple selectable DC test voltages
- Polarization Index (PI) measurement*
- Dielectric Absorption Ratio (DAR) measurement*
- Automatic discharge after testing
- Large backlit LCD display
- AC/DC voltage measurement
- Timer function for diagnostic testing*
- Data Hold and memory storage (model dependent)
- Rugged handheld construction for field applications
- High-voltage warning and overload protection
- Reliable performance in demanding environments
*Available on selected models.
Benefits
- Detects insulation deterioration before equipment failure
- Improves personnel and equipment safety
- Reduces unplanned downtime
- Supports predictive and preventive maintenance
- Extends the service life of electrical assets
- Assists with compliance to electrical testing standards
- Provides reliable and repeatable measurement results
- Enables advanced insulation condition assessment
- Portable design for convenient field testing
- Increases maintenance efficiency and productivity
