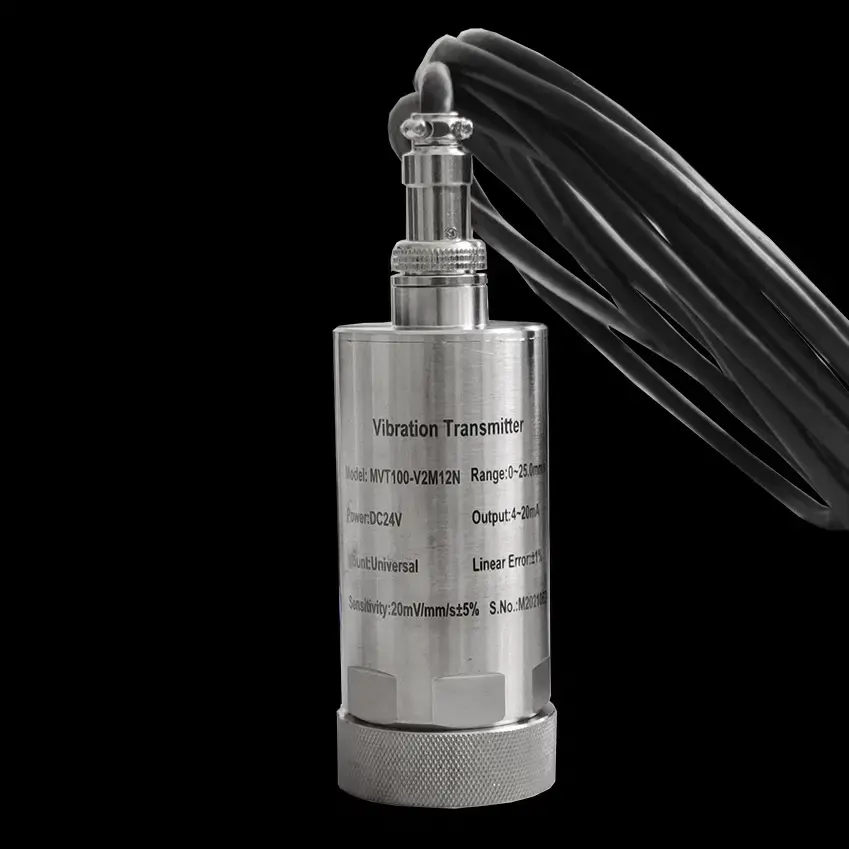

ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter
ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter is an industrial vibration monitoring device designed for bearing vibration measurement and real-time condition monitoring of rotating machinery. Its magnetic base option enables convenient attachment to suitable ferromagnetic measurement surfaces, while the sensor measures vibration velocity or displacement across a 5-1000 Hz frequency response range. The transmitter provides a specified 2-wire 4-20 mA output for integration with PLCs, DCS systems, and industrial vibration monitoring equipment.
The ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter is a compact industrial instrument designed to measure and continuously monitor vibration from rotating machinery, mechanical equipment, and other vibration-sensitive systems.
The ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter series combines vibration sensing and signal transmission in an integrated device. The magnetic-type version is equipped with a 42 mm diameter magnetic base, allowing it to be attached to suitable ferromagnetic surfaces for convenient vibration measurement. This makes it particularly useful for temporary, portable, or maintenance-based vibration measurements where drilling and permanent threaded installation may not be practical.
The transmitter can measure either vibration velocity or vibration displacement, depending on the selected measurement range. The 2-wire configuration converts the measured vibration into a standard 4-20 mA output signal, which can be connected to industrial monitoring and automation equipment.
The ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter0 can be used for vibration measurement and real-time monitoring of equipment such as submersible pumps, fans, steam turbines, coal mills, oxygen generators, generators, centrifuges, compressors, water pumps, and motors. It can also be applied to low-frequency vibration monitoring for machine tools, machining centers, underground pipelines, automotive equipment, and other systems where environmental vibration may affect equipment operation.
How Does the ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter Work?
The magnetic base is placed directly against a suitable metal surface on or near the equipment being monitored. During operation, mechanical vibration from the machine is transferred through the mounting surface to the vibration sensing element.
The sensor detects the vibration and the integrated electronics process the signal according to the selected measurement range. The resulting measurement is transmitted as a 4-20 mA signal through the 2-wire connection.
It can be configured for different vibration measurement ranges, including:
Vibration Velocity
- 0-10 mm/s
- 0-25 mm/s
- 0-50 mm/s
Vibration Displacement
- 0-100 μm
- 0-200 μm
- 0-500 μm
The 4-20 mA output can then be connected to a PLC, DCS, 4-20 mA monitoring device, data acquisition system, or other compatible industrial control equipment for continuous monitoring, alarm generation, trend analysis, and condition-based maintenance.
Why Choose the ProSight 2 Wire Magnetic Type Integrated Vibration Sensor Transmitter?
- Convenient magnetic mounting – The 42 mm diameter magnetic base allows fast attachment to suitable metal surfaces.
- 2-wire 4-20 mA output – Provides a standard industrial signal for integration with monitoring and control systems.
- Integrated sensor and transmitter – Combines vibration measurement and signal conversion in one compact unit.
- Velocity or displacement measurement – Supports different vibration monitoring requirements.
- Wide frequency response – 5-1000 Hz frequency response covers a broad range of machinery vibration conditions.
- Multiple measurement ranges – Allows the transmitter to be matched to different machine vibration levels.
- Stainless steel housing – Provides durable construction for industrial environments.
- Flexible connection options – Available with different process connections in the MVT100 series.
- Optional waterproof connector – Provides additional flexibility for demanding installation environments.
- PLC and DCS integration – Designed to work with common industrial automation and monitoring infrastructure.
- Suitable for real-time monitoring – Supports continuous observation of equipment vibration.
- Easy to install for temporary measurements – Magnetic mounting is useful where permanent mounting is undesirable or impractical.
Benefits
- Enables quick and convenient vibration measurements on suitable metal machinery surfaces.
- Helps detect abnormal vibration conditions at an early stage.
- Supports predictive and condition-based maintenance programs.
- Helps reduce unexpected equipment downtime.
- Provides continuous vibration data to centralized monitoring systems.
- Allows remote monitoring through integration with PLC or DCS systems.
- Helps identify changes in machine operating condition over time.
- Reduces installation time for suitable temporary or maintenance-based measurements.
- Provides a practical solution for monitoring rotating machinery.
- Supports multiple vibration measurement ranges for different equipment requirements.
- Helps maintenance teams track equipment health and prioritize inspections.
- Provides a standardized 4-20 mA signal for industrial automation applications.
