Portable Display Data Logger for CWT-UWD series Ultrasonic Weather Station
SPECIFICATIONS
Brand Name: ComWinTop
Model Number: CWT-UWD
Origin: Mainland China
Weather Station displayer
Features
Plug and play testing, Real-time display wind speed and direction, temperature and humidity, Noise, PM2.5 and PM10, atmospheric pressure, illumination, rainfall.
4.3" LCD touch screen easy to operate, display real-time value, curve, logs, can set calibration on screen
Inside 5000mA rechargeable lithium battery, can continuously operate for 48 hours, come with AC110/220V to DC12.6V charger
Support 1350 logs, settable interval of logging, can automatically export logs to SD card, come with 1GB SD card
Connect sensor by pluggable waterproof connector
Sensor cable length is 3m, can extend
Portable or wall-mounted
Specification
Power supply | DC12.6V |
Max Power consumption | 2W |
Screen | 4.3" TFT LCD |
Resolution (PX) | 480X272 |
Operating environment | -10℃-50℃/ 10~90%RH |
Screen dimensions | 142*70.5*27mm |
Inside battery | 5000mA rechargeable lithium battery |
SD card | 1GB |
Weight | 1KG |
Size

Equipment operating
Connect sensor


Operating on screen

Curve graph page

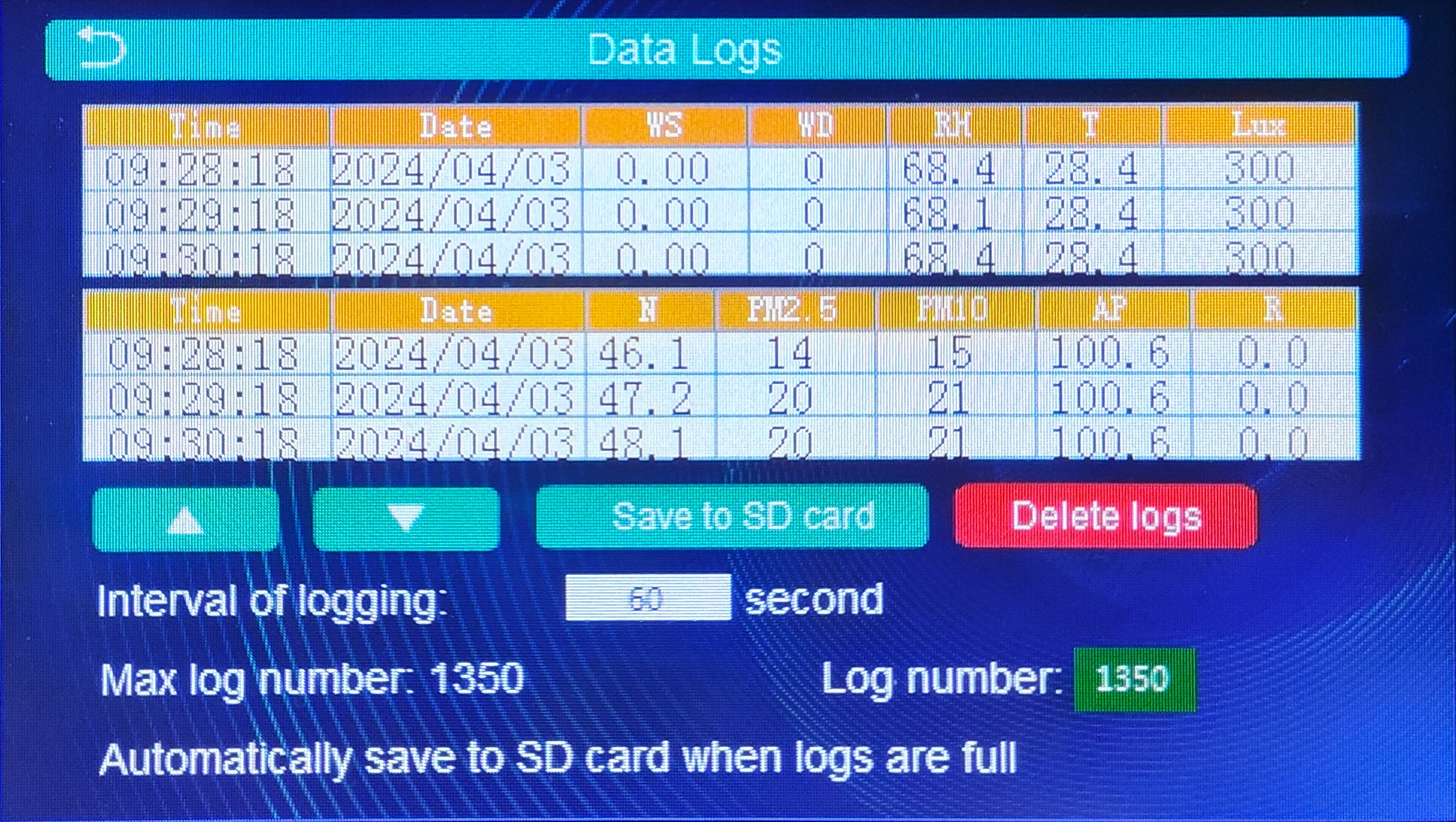

View data log in this page

Interval of logging means how often the device logs data
