PID Ramp & Soak Controller – 0–10V Input Programmable Process Temperature

The PID Ramp & Soak Controller with 0–10V Input is designed for advanced process control applications where temperature or process variables are provided via an analogue signal input, rather than direct sensor connection.

This controller receives a 0–10V input signal from external devices such as temperature transmitters, PLC systems, or process controllers, and applies advanced PID control algorithms to regulate outputs accordingly. This makes it ideal for systems where measurement and control are separated or centrally managed.

The unit supports programmable ramp and soak profiles, allowing users to define multi-step control sequences for gradual changes, holding periods, and controlled process cycles. This is particularly useful for applications such as industrial heating systems, environmental chambers, laboratory testing, and process automation.

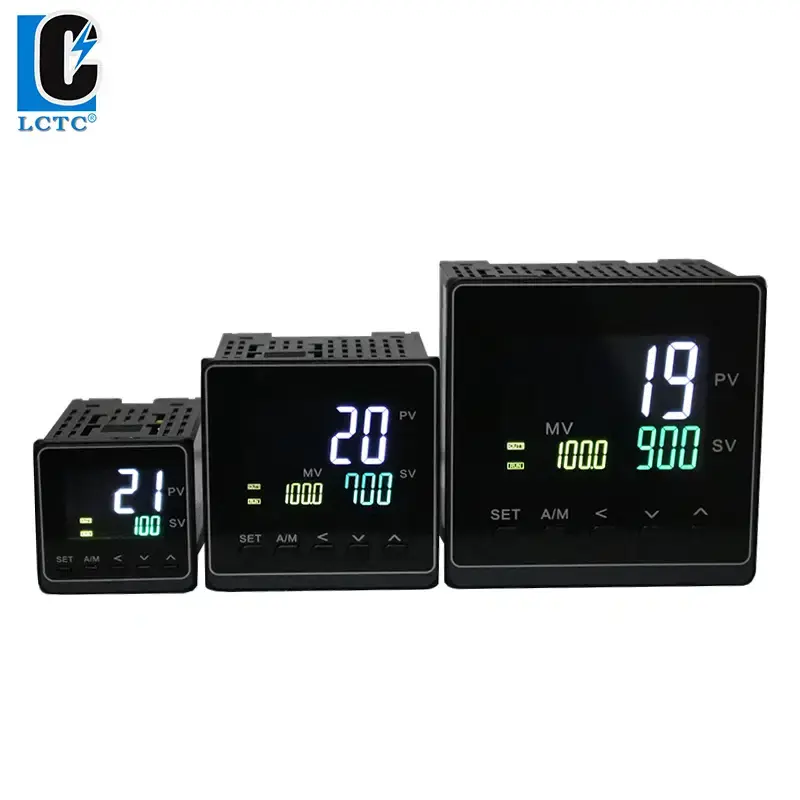

A large-format display interface provides clear visibility of process values, setpoints, and program status, making it suitable for both industrial panels and operator monitoring environments.

The controller is designed for stable and accurate regulation, ensuring minimal overshoot and consistent process control. It can be integrated into systems controlling power regulators, SSRs, analogue outputs, and automation equipment.

This device is best suited for industrial automation, process control systems, and applications requiring analogue signal-based control, rather than direct sensor input.

Key Features

• PID control with ramp and soak programming

• 0–10V analogue input support

• Suitable for transmitter and PLC-based systems

• Large display for clear process visualisation

• Programmable multi-step control profiles

• Stable and accurate process regulation

• Designed for industrial automation and control systems

• Compatible with SSR, analogue control devices, and power regulators
