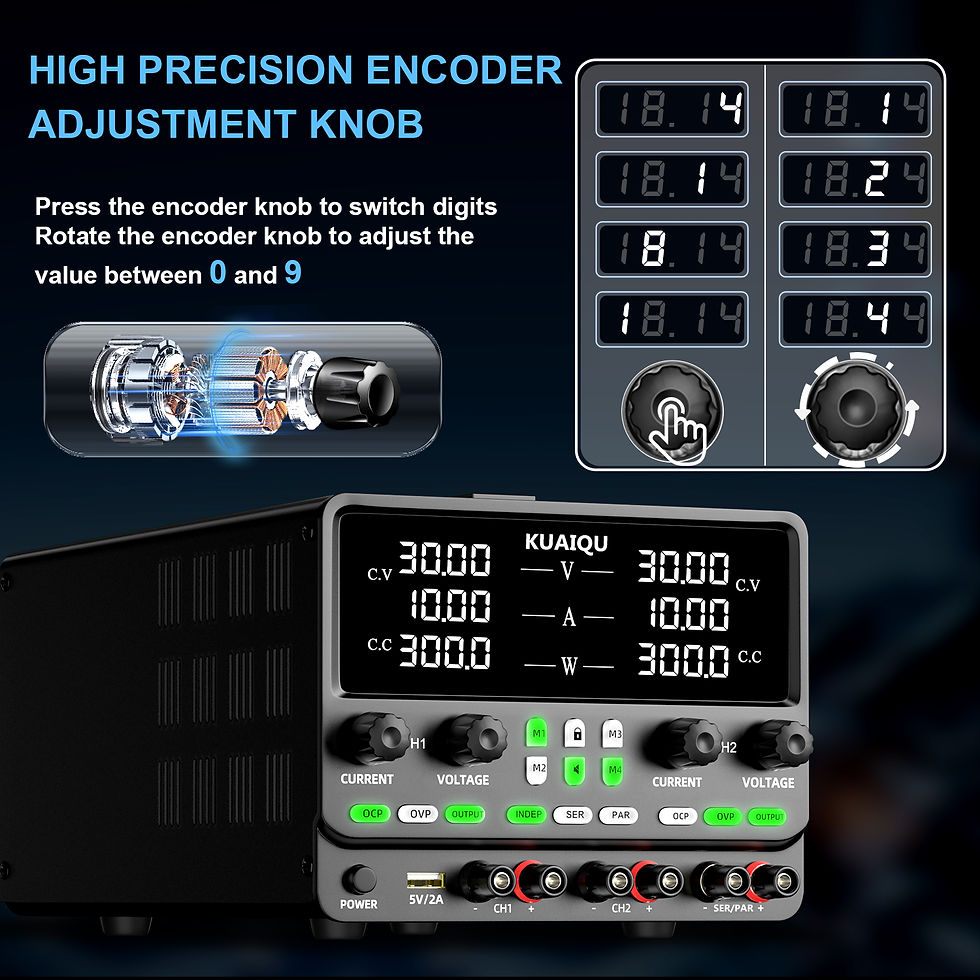

Dual-Channel Adjustable DC Bench Power Supply – Series & Parallel Operation

This dual-channel adjustable DC bench power supply is designed for laboratory, industrial, and engineering applications that require multiple output configurations from a single unit.

Each channel can operate independently or be combined using series or parallel modes, allowing the power supply to function as multiple output configurations without external wiring. This makes it ideal for applications requiring higher voltage, higher current, or dual-rail supply simulation.

The unit supports constant voltage (CV) and constant current (CC) regulation, delivering stable output for sensitive electronics, power electronics research, battery management testing, embedded systems development, and production line testing.

With a compact footprint and intelligent output control, this power supply reduces bench clutter while providing the flexibility normally requiring multiple separate units.

Key Features

• Dual independent DC outputs

• Series mode for increased output voltage

• Parallel mode for increased output current

• Constant voltage (CV) and constant current (CC) operation

• Multi-configuration “4-in-1” power supply functionality

• Stable regulated output suitable for precision electronics

• Suitable for simultaneous multi-device testing

• Designed for laboratory, development, and production use

Operating Modes

• Independent Mode – Two isolated outputs operate separately

• Series Mode – Outputs combined to increase voltage

• Parallel Mode – Outputs combined to increase current

Available Output Configurations

(Variant dependent)

Dual Independent Output

• 0–30 V / 5 A × 2

• 0–30 V / 10 A × 2

• 0–60 V / 5 A × 2

Series Mode

• Up to 60 V / 5 A

• Up to 60 V / 10 A

• Up to 120 V / 5 A

Parallel Mode

• Up to 30 V / 10 A

• Up to 30 V / 20 A

• Up to 60 V / 10 A
