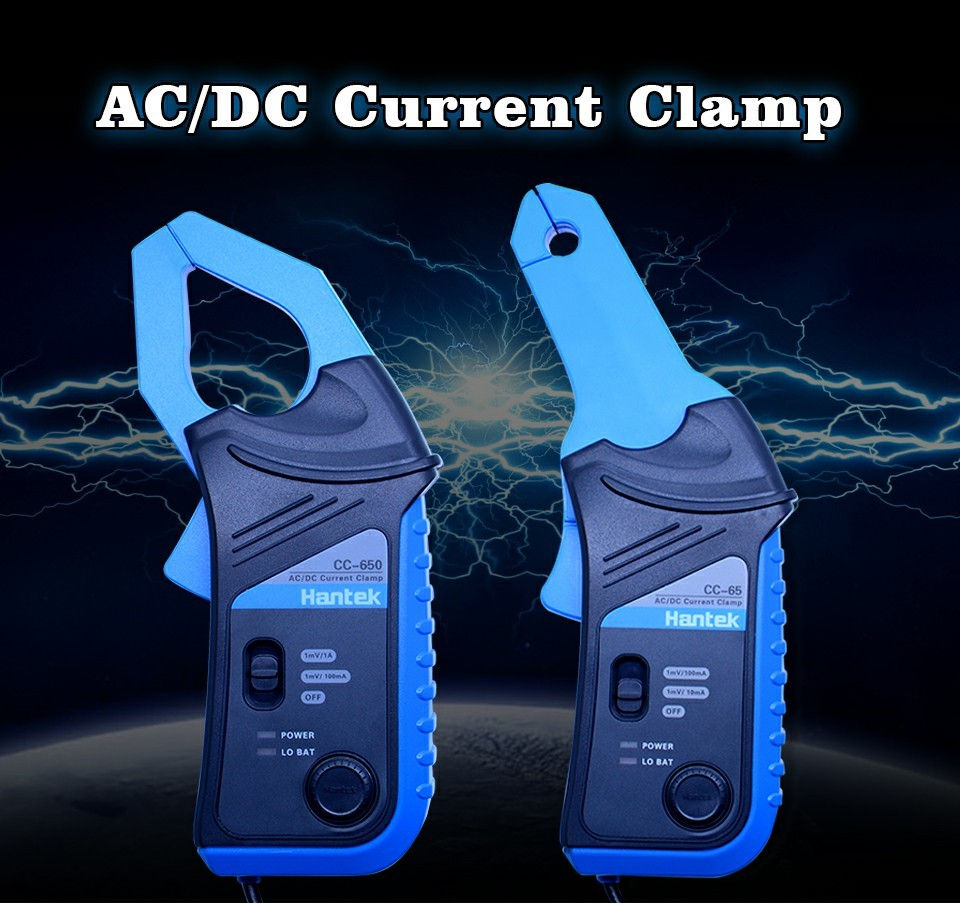

AC DC Current Clamp Probe – Oscilloscope and Multimeter Compatible up to 65A

This AC/DC Current Clamp Probe is a precision current transducer that converts AC or DC current into a proportional voltage signal, allowing direct measurement using an oscilloscope or multimeter without breaking the circuit.

Using a Hall-effect sensor combined with a permalloy core, the clamp provides linear, stable measurement of both AC and DC currents across a wide range. When connected to an oscilloscope via BNC, it enables real-time observation of current waveforms. When connected to a multimeter, it allows accurate current readings without direct inline measurement.

With a maximum measurement range up to 65A, this clamp is well suited for power circuits, motor drives, frequency converters, switch-mode power supplies, and industrial electronics. Its compact jaw size allows easy access to conductors in control panels and equipment.

A built-in low battery indicator ensures reliable operation during field and laboratory use.

Key Applications

• Power circuit measurement and fault analysis

• Motor drive and inverter diagnostics

• Frequency converter testing

• Power electronics measurement

• Industrial maintenance and commissioning

• Current waveform analysis with oscilloscopes

Key Features

• Measures AC and DC current

• Compatible with oscilloscopes and multimeters

• Bandwidth up to 20kHz

• Voltage output scaling for easy interpretation

• Hall-effect current sensing technology

• Real-time current waveform observation

• Compact jaw design for confined spaces

• Low battery indicator LED
