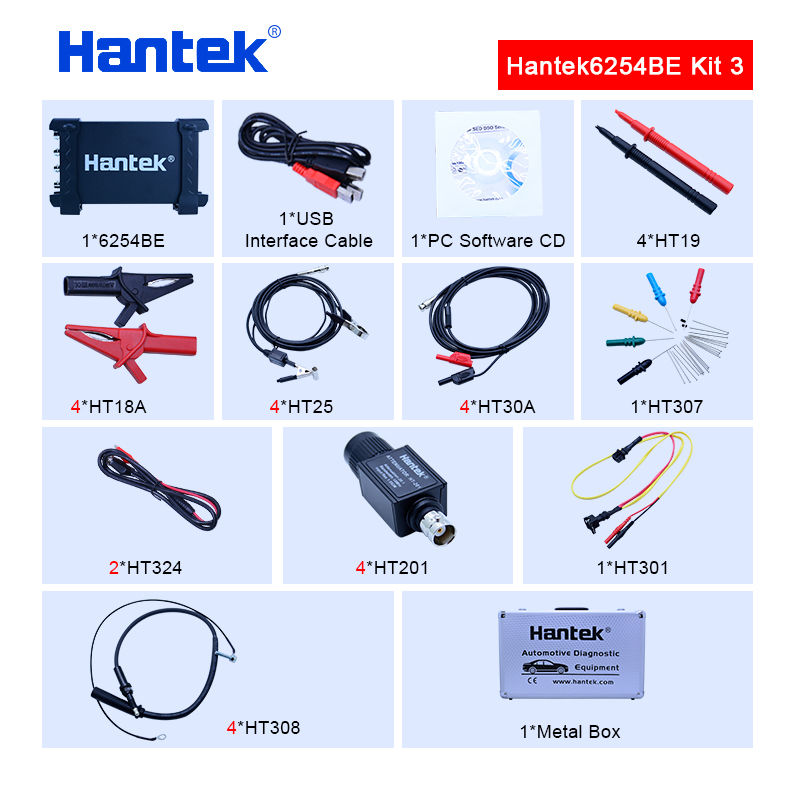

Automotive USB Digital Oscilloscope Kit – 4 Channel 250MHz 1GSa/s PC-Based Diagnostic System

Digital USB Oscilloscope Kit 6254BE 4 CH 1Gsa/s 250MHz Bandwidth

PriceFrom AU$1,604.49
Excluding Sales Tax
A high-performance 4-channel automotive USB oscilloscope kit with 250MHz bandwidth and 1GSa/s sampling, designed for advanced vehicle diagnostics, ECU testing, sensor analysis, and automotive electronics troubleshooting. Includes automotive test functions and a comprehensive accessory kit for workshop and field use.

This Automotive USB Digital Oscilloscope Kit is a powerful PC-based diagnostic platform built for professional technicians, engineers, and automotive specialists who require accurate, multi-channel signal analysis.

Featuring four isolated analog channels, 250MHz bandwidth, and a 1GSa/s real-time sampling rate, the oscilloscope captures fast electrical signals from ignition systems, sensors, actuators, starters, charging circuits, and vehicle communication buses with high precision. A 64K memory depth supports stable waveform capture and reliable diagnostics.

The system includes built-in automotive diagnostic functions, covering common vehicle measurements such as intake manifold vacuum and ignition, idle exhaust ignition, starting exhaust ignition, and fuel system diagnostics. Dedicated test modes for primary and secondary ignition, air flow meters, camshaft and crankshaft sensors, lambda sensors, and throttle position sensors reduce setup time and improve diagnostic efficiency.

Advanced bus diagnostics support CAN and LIN systems, enabling examination of signal integrity, long-term acquisition, and communication faults. The oscilloscope also supports petrol and diesel vehicles, making it suitable for a wide range of automotive applications.

The compact anodised aluminium enclosure provides durability, heat resistance, and portability, making the unit ideal for workshops, mobile diagnostics, production lines, and training environments. USB plug-and-play operation allows quick setup on Windows laptops and tablets without external power supplies.

Key Applications

  • Automotive oscilloscope diagnostics

  • ECU, sensor, and actuator testing

  • Ignition system analysis

  • Starter and charging circuit diagnostics

  • CAN and LIN bus diagnostics

  • Automotive training and technical education

  • Mobile and field vehicle diagnostics

Key Features

  • 4-channel automotive USB oscilloscope

  • 250MHz bandwidth

  • 1GSa/s real-time sampling rate

  • Four isolated input channels

  • Pre-configured automotive diagnostic tests

  • CAN and LIN bus analysis

  • FFT spectrum analyser

  • PASS and FAIL testing

  • Waveform record and replay

  • Data export to CSV, BMP, and JPG

  • USB 2.0 plug-and-play operation

  • Compact anodised aluminium enclosure

  • Suitable for workshop and mobile use
