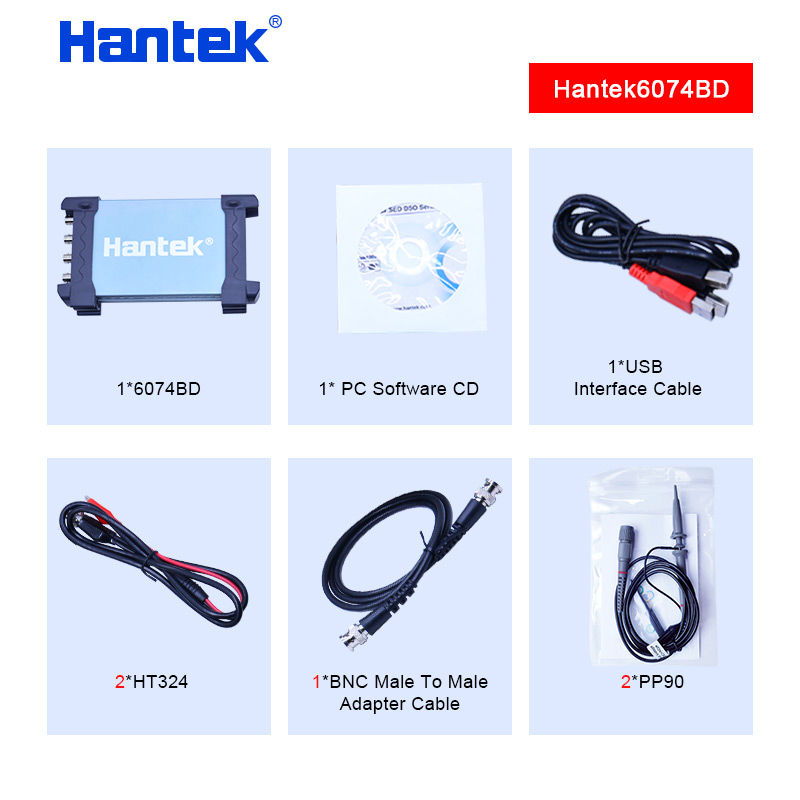

Automotive USB Digital Oscilloscope – 4 Channel, 70MHz, 1GSa/s with Vehicle Diagnostics

Automotive USB Digital Oscilloscope – 4 Channel, 70MHz, 1GSa/s

From AU$346.47Sale Price
Excluding Sales Tax
Select
6074BE
6074BC
6074BD
Quantity
Order (ETA 10-12 Business Days)
A professional 4-channel automotive USB oscilloscope with 70MHz bandwidth and 1GSa/s sampling, designed for vehicle diagnostics, ECU testing, sensor analysis, and automotive electronics troubleshooting. Available with vehicle test presets and optional waveform generation.

This Automotive USB Digital Oscilloscope is a compact yet powerful PC-based diagnostic tool developed for technicians, engineers, and automotive service professionals who require reliable multi-channel signal analysis.

Featuring four independent analog channels, 70MHz bandwidth, and a 1GSa/s real-time sampling rate, the oscilloscope captures fast electrical signals from vehicle sensors, ignition systems, injectors, actuators, and control modules with high accuracy. A 64K memory depth supports stable waveform acquisition and repeatable analysis for day-to-day diagnostics.

Depending on configuration, the oscilloscope can include pre-configured automotive test modes covering common vehicle signals, significantly reducing setup time during diagnostics. Select variants also integrate a built-in function and arbitrary waveform generator, enabling signal simulation and advanced troubleshooting without additional equipment.

The unit connects directly to a Windows PC or laptop via USB, offering plug-and-play operation and a bench-style software interface. Advanced features such as FFT spectrum analysis, serial bus decoding, and data export to CSV or image formats make it suitable for both automotive workshops and technical training environments.

Available Configurations

  • 4-Channel Oscilloscope 70MHz

  • 4-Channel Oscilloscope with Waveform Generator

  • 4-Channel Oscilloscope with Automotive Test Presets

Please select the required configuration before purchase.

Key Applications

  • Automotive oscilloscope diagnostics

  • Vehicle ECU and sensor testing

  • USB oscilloscope for automotive electronics

  • Ignition, injector, and actuator signal analysis

  • Automotive training and technical education

  • Production line and field diagnostics

Key Features

  • 4-channel automotive USB oscilloscope

  • 70MHz bandwidth

  • 1GSa/s real-time sampling rate

  • PC-based operation via USB 2.0

  • Optional built-in function and arbitrary waveform generator

  • Optional pre-configured vehicle diagnostic tests

  • FFT spectrum analyser

  • Serial bus trigger and decode

  • Data export to CSV, BMP, and JPG

  • Compact and portable design for workshop or field use
