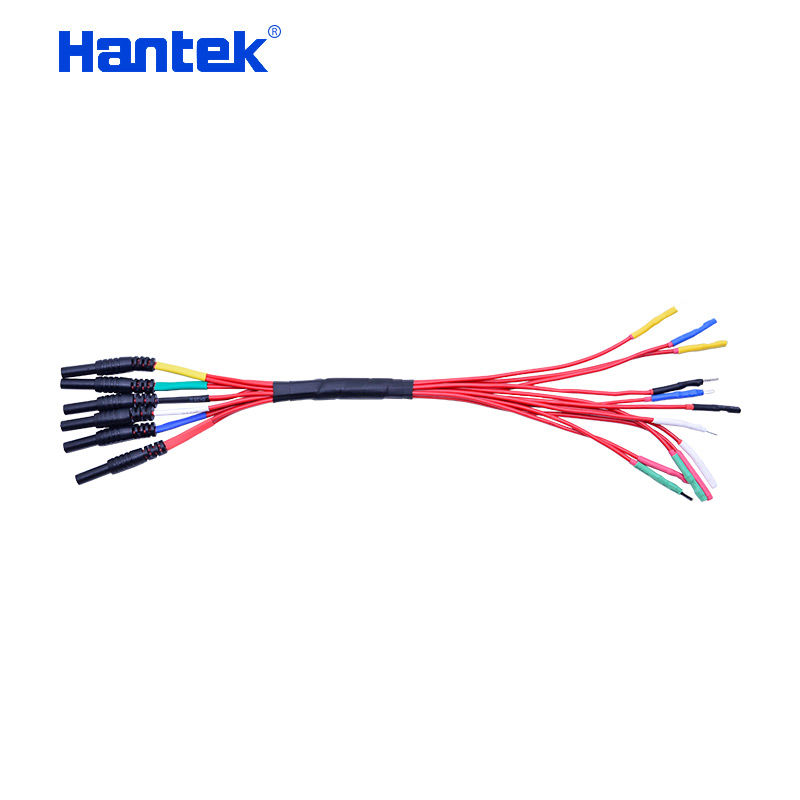

6-Way Universal Breakout Leads – Automotive Oscilloscope Diagnostic Leads Set
A professional 6-way universal breakout lead set designed for automotive oscilloscope diagnostics, allowing safe, non-intrusive connection to vehicle sensors and actuators without piercing or damaging wiring. Ideal for fast and reliable testing in workshops and mobile diagnostics.
These 6-Way Universal Breakout Leads are essential accessories for automotive diagnostics, enabling an oscilloscope or test instrument to connect directly between vehicle connectors and wiring harnesses without cutting, stripping, or piercing insulation.
Each breakout lead is designed to be inserted inline between a plug and socket pair, providing six individual signal access points via standard 4 mm banana sockets. This allows technicians to monitor multiple signals simultaneously while maintaining factory wiring integrity.
The set includes four different blade sizes, ensuring compatibility with a wide range of automotive connectors. This makes the leads suitable for testing MAP sensors, temperature sensors, throttle position sensors, airflow sensors, fuel pumps, injectors, and primary ignition circuits across most vehicle makes and models.
With robust construction and colour-coded leads for easy identification, these breakout leads are well suited for automotive workshops, training environments, production testing, and mobile diagnostics.
Key Applications
-
Automotive oscilloscope diagnostics
-
Sensor and actuator signal testing
-
ECU input and output analysis
-
MAP, TPS, airflow, and temperature sensors
-
Fuel injector and fuel pump diagnostics
-
Primary ignition circuit testing
-
Workshop and mobile vehicle diagnostics
Key Features
-
6-way breakout lead design
-
Inline connection without wire damage
-
No insulation piercing required
-
Compatible with most automotive connectors
-
Four connector sizes included
-
4 mm banana socket outputs
-
Colour-coded leads for easy identification
-
Durable and workshop-ready construction
