4CH Automotive Oscilloscope kit DSO3064 Kit for Car Diagnostic

This Automotive USB Digital Oscilloscope Kit is a compact yet capable PC-based diagnostic solution developed for automotive technicians, engineers, and service professionals who require accurate multi-channel signal analysis.

The oscilloscope provides four analog input channels, 60MHz bandwidth, and a 200MS/s real-time sampling rate, enabling precise capture of electrical signals from ignition systems, sensors, actuators, starters, and charging circuits. With memory depth up to 16M per channel, the system supports long-duration recording and detailed post-analysis.

Dedicated vehicle diagnostic functions simplify common automotive measurements, including cranking exhaust diagnostics, primary and secondary ignition testing, air flow, camshaft, and crankshaft sensor analysis, and CAN bus data viewing. The system supports petrol and diesel vehicles, making it suitable for a wide range of automotive applications.

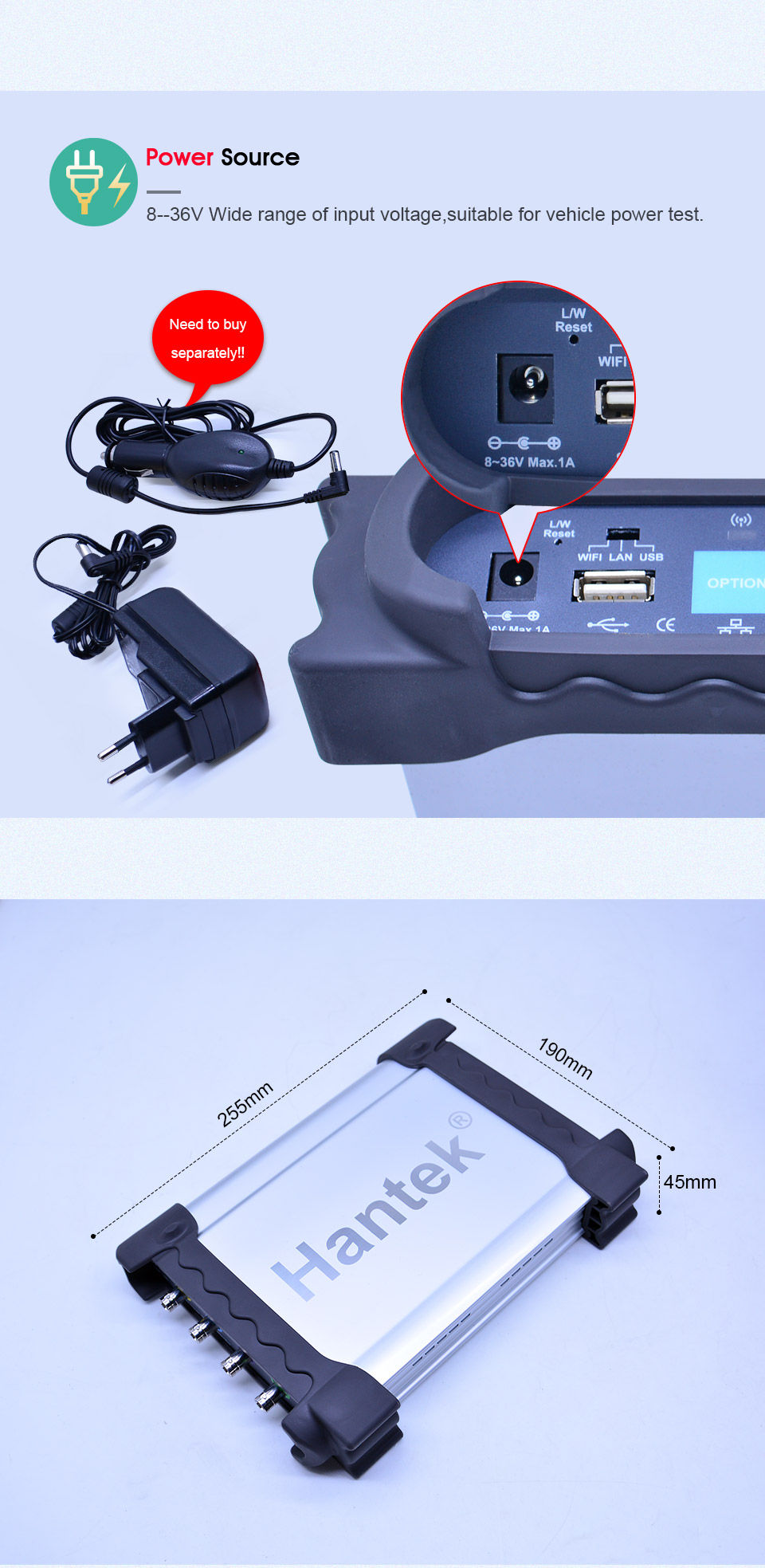

Advanced analysis tools such as FFT spectrum analysis, frequency counter, PASS and FAIL testing, and waveform recording and playback provide bench-level diagnostic capability in a portable USB-based platform. The oscilloscope operates directly from vehicle power with a wide input voltage range, making it ideal for mobile diagnostics and workshop environments.

Key Applications

• Automotive oscilloscope diagnostics

• Vehicle sensor and actuator testing

• Ignition system analysis

• Starter and charging circuit diagnostics

• CAN bus signal inspection

• Automotive training and technical education

• Mobile and field vehicle diagnostics

Key Features

• 4-channel automotive USB oscilloscope

• 60MHz bandwidth

• 200MS/s real-time sampling rate

• Memory depth up to 16M per channel

• Dedicated automotive diagnostic modes

• FFT spectrum analyser

• Built-in frequency counter

• PASS and FAIL testing

• Waveform record and replay

• USB 2.0 plug-and-play operation

• Optional LAN communication

• Wide input voltage range for vehicle testing
