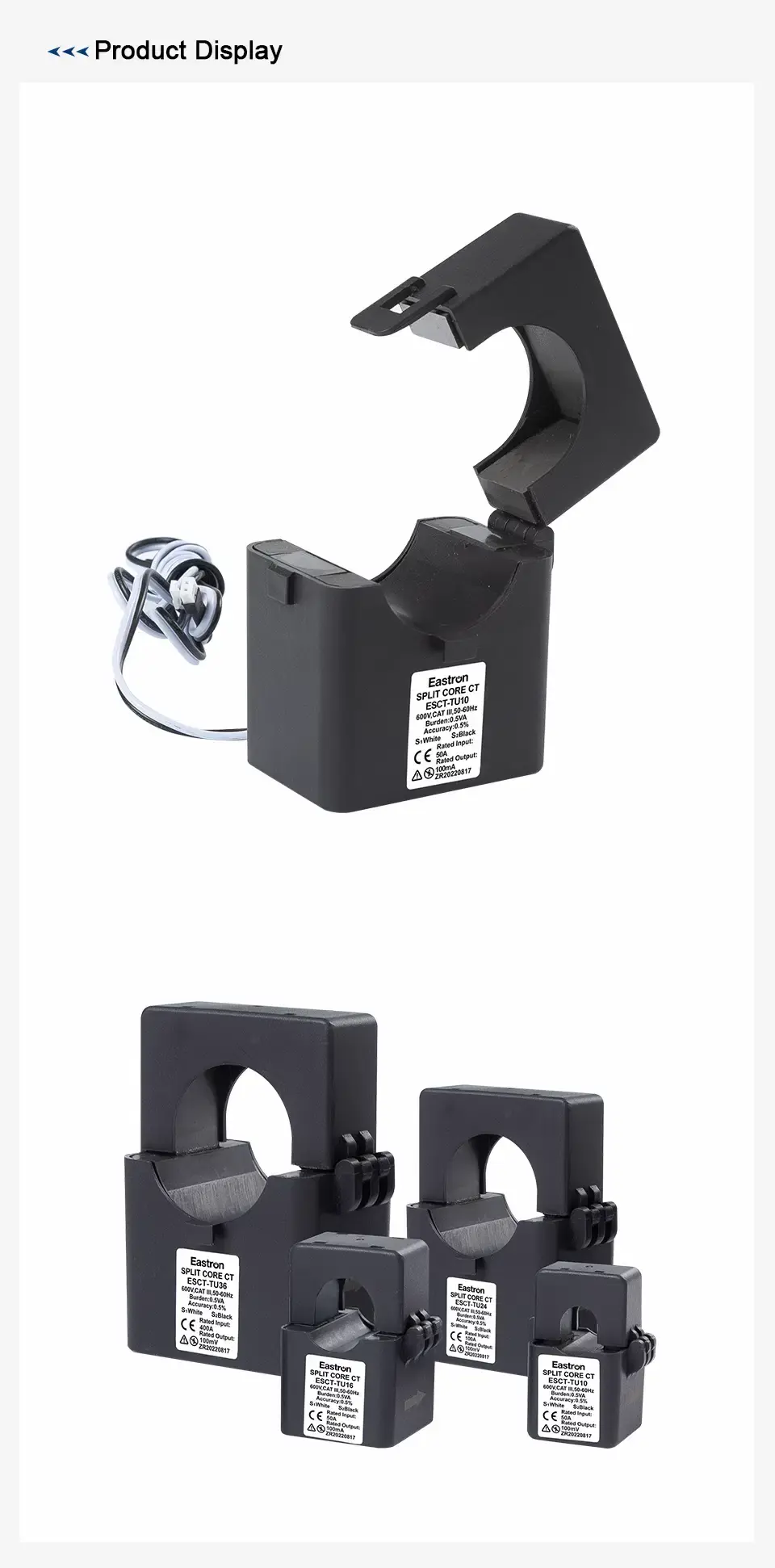

Split Core Current Transformer – 5–75A Primary, 100–333mV Output

Split Core Current Transformer – 5–75A Primary, 100–333mV Output

SKU: PSI-B6B31939151942EA
A$57.00Price

Compact split-core current transformer designed for low-current circuits from 5A to 75A. Features safe 100–333mV voltage output for direct connection to digital energy meters, IoT monitoring devices, and data loggers.

Select
ESCT-TU10 75A-333mV
ESCT-TU10 10A-333mV
ESCT-TU10 20A-333mV
ESCT-TU10 30A-333mV
ESCT-TU10 10A-100mV
ESCT-TU10 50A-333mV
ESCT-TU10 5A-100mV
ESCT-TU10 50A-100mV
ESCT-TU10 20A-100mV
Quantity

This low-range Split Core Current Transformer is engineered for accurate measurement of small to medium AC loads in commercial and light industrial installations.

With a primary current range of 5A to 75A and a low-voltage secondary output of 100mV to 333mV, the transformer is ideal for modern electronic metering systems requiring voltage-input CT signals.

Unlike traditional 1A or 5A secondary CTs, the millivolt output provides improved safety and simplified integration with:

  • Digital energy meters

  • IoT energy monitoring gateways

  • Building Management Systems (BMS)

  • PLC and SCADA systems

  • Data loggers

  • Smart facility monitoring platforms

The split-core design enables fast, non-intrusive installation around existing conductors without disconnecting wiring-making it ideal for retrofit upgrades and live electrical environments.

Operating at 50–60Hz, the transformer maintains a phase angle error of less than 2° at 50% rated current, supporting reliable sub-circuit energy tracking and load analysis.

Typical applications include:

  • Lighting circuits

  • Small power circuits

  • HVAC equipment monitoring

  • Solar inverter sub-circuits

  • Machinery and plant monitoring

  • Energy audits and facility upgrades
