3-in-1 Current Transformer – 60A to 250A, 100mA / 333mV Output

From AU$72.82

Excluding Sales Tax

3-in-1 split-core current transformer with selectable 100mA or 333mV output, supporting primary currents from 60A to 250A. Designed for energy metering, power monitoring, and building management systems in 50–60Hz AC installations.

Select

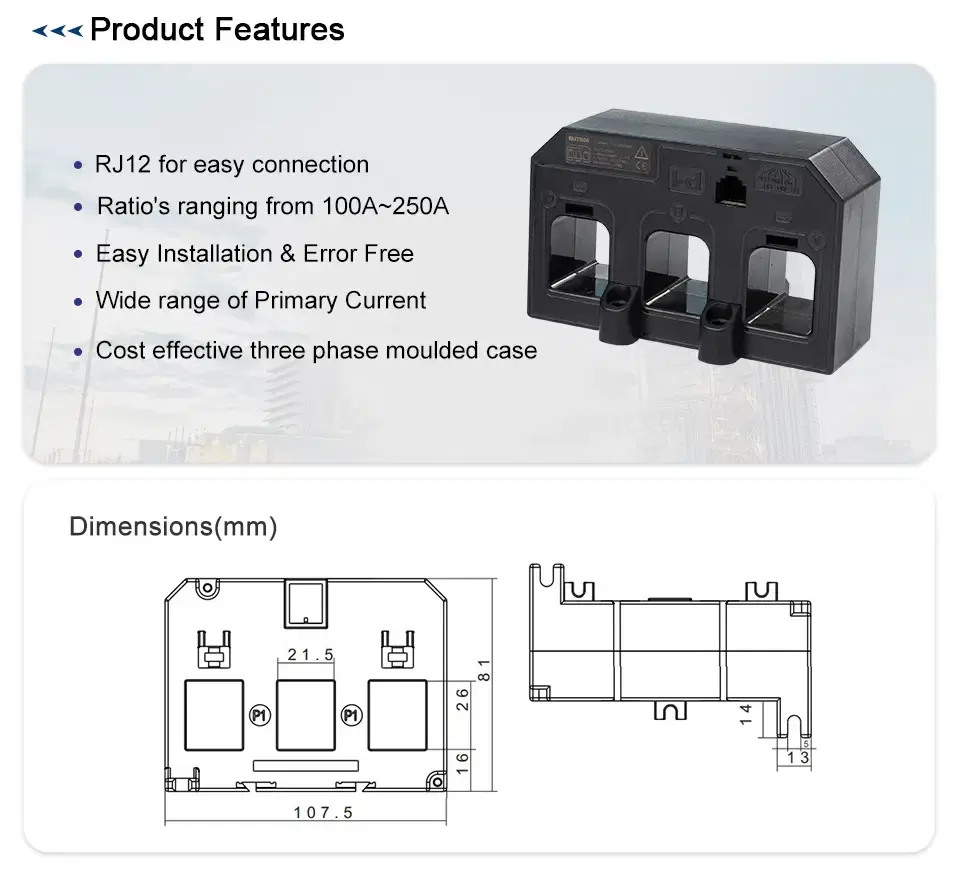

3-in-1 current transformer is engineered for accurate AC current measurement in commercial and industrial electrical systems. Designed for primary currents ranging from 60A to 250A, the unit provides either a 100mA secondary current output or 333mV voltage output (model dependent), allowing flexible integration with energy meters, power analysers, and monitoring equipment.

The split-core design enables installation without disconnecting existing conductors, making it ideal for retrofit applications and energy monitoring upgrades.

With an insulation voltage rating of 600VAC and phase angle error below 2° at 50% of rated current, the transformer delivers reliable performance for load analysis, demand monitoring, and sub-metering systems.

Suitable for 50–60Hz AC systems, the device is commonly used in switchboards, distribution panels, and building management installations.

Typical Applications:

Energy monitoring systems
Sub-metering installations
Building Management Systems (BMS)
Power quality analysis
Load monitoring in commercial facilities
Industrial control panels
