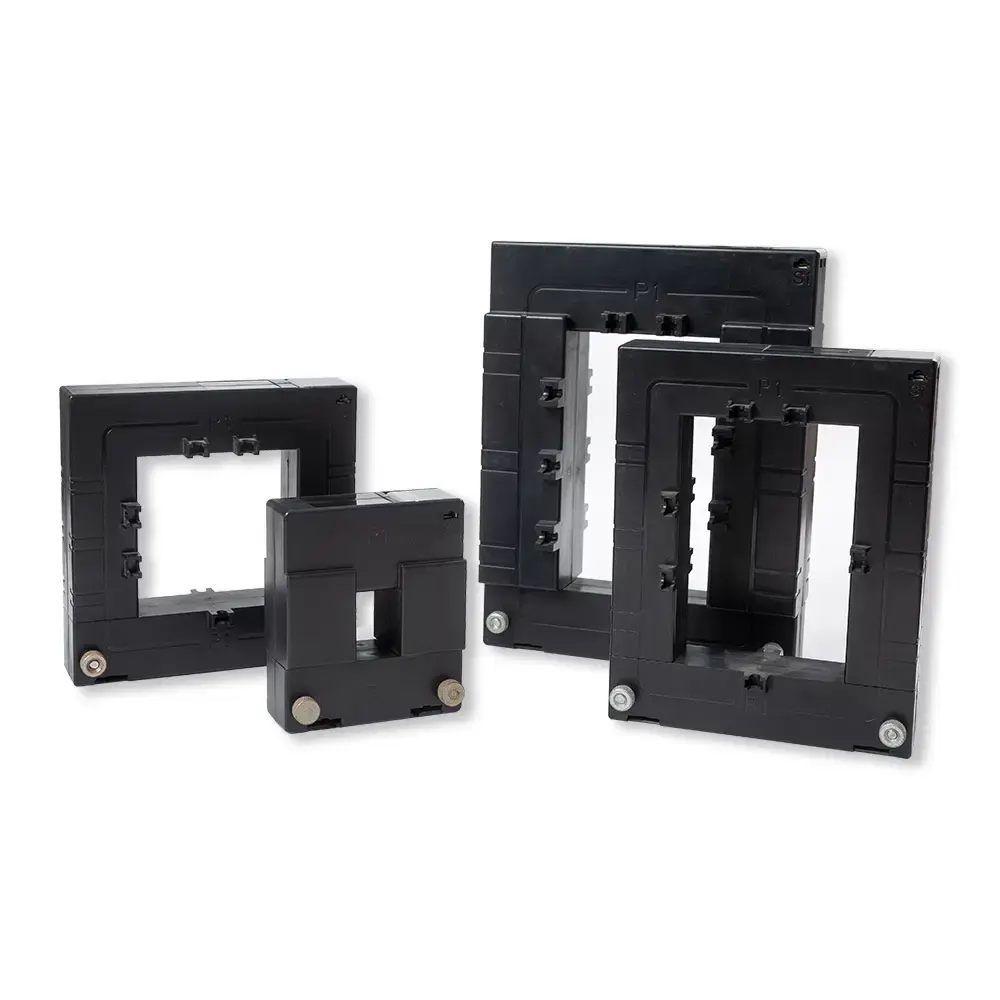

High-Capacity Split Core Current Transformer – 600–1500A / 5A Secondary
Heavy-duty split core current transformer designed for high-current industrial feeders from 600A to 1500A. Ideal for main incomer monitoring, generator metering, mining, manufacturing, and large-scale energy management systems.

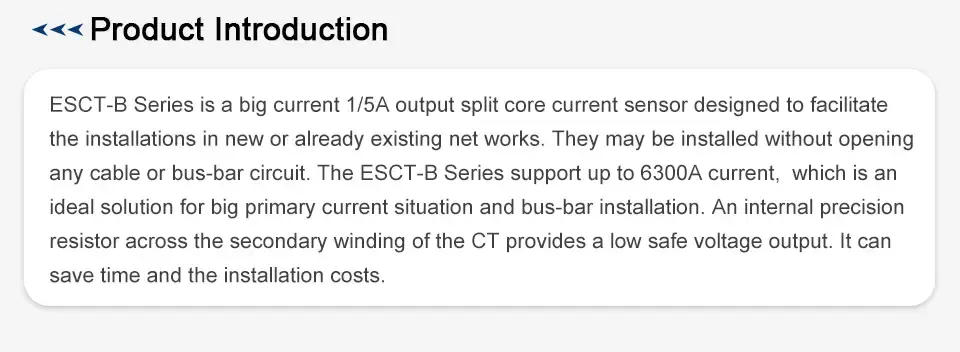

This high-capacity Split Core Current Transformer (CT) is engineered for accurate measurement of large AC loads in demanding commercial and industrial power environments.
With a primary current range of 600A to 1500A and a standard 5A secondary output, the transformer integrates with:
-
Industrial energy meters
-
Power quality analysers
-
Protection relays
-
SCADA and PLC monitoring systems
-
Building Management Systems (BMS)
-
IoT energy monitoring platforms
The split-core construction allows installation around existing conductors without disconnecting live cabling, making it ideal for retrofit projects, switchboard upgrades, and operational facilities where downtime must be minimised.
Designed for 50–60Hz AC systems, the CT provides stable and reliable measurement performance with a phase angle error of less than 2° at 50% of rated current, supporting accurate load profiling and demand analysis.
Typical applications include:
-
Main switchboard incomers
-
Large distribution feeders
-
Mining and processing plants
-
Generator output monitoring
-
Transformer secondary measurement
-
Heavy manufacturing and infrastructure facilities
