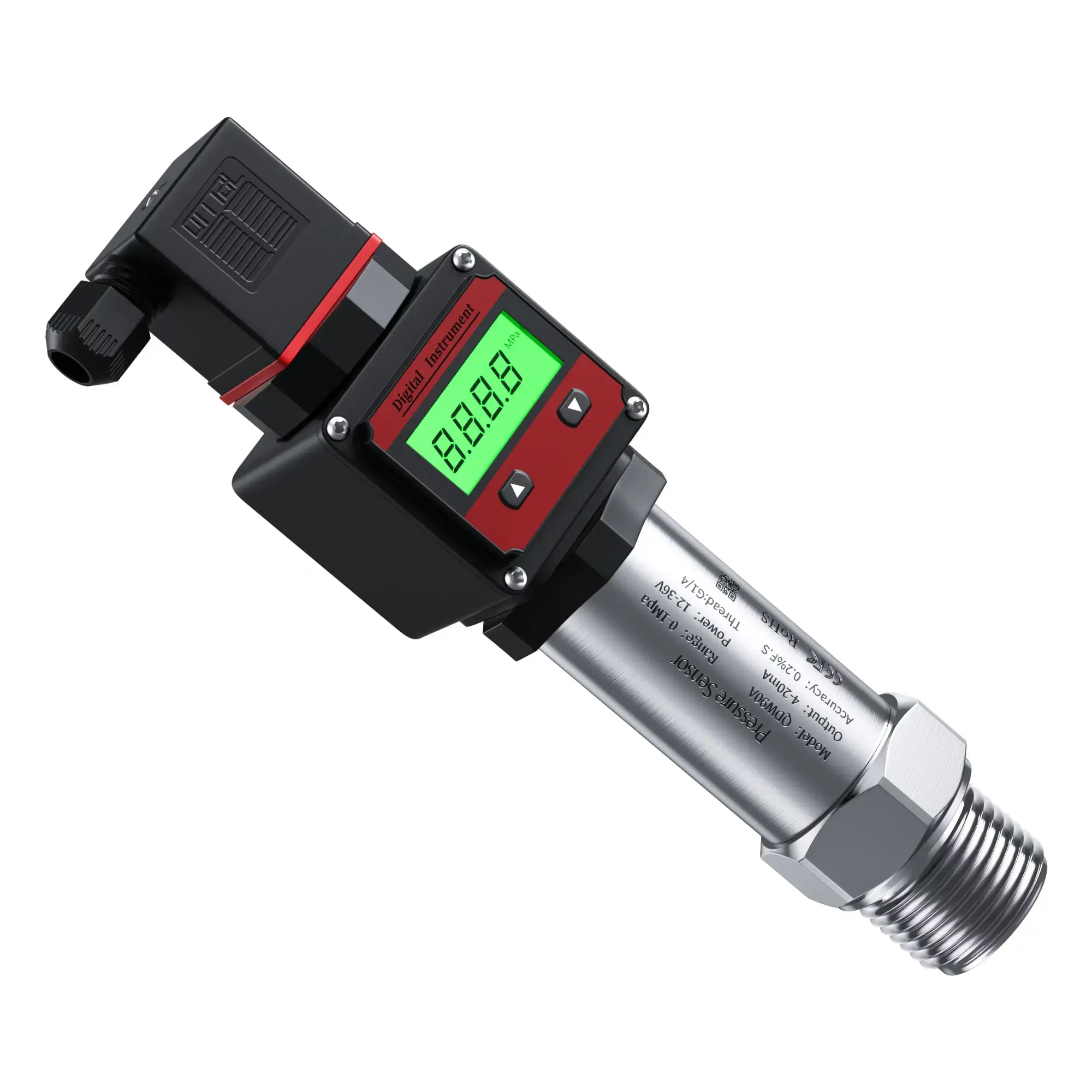

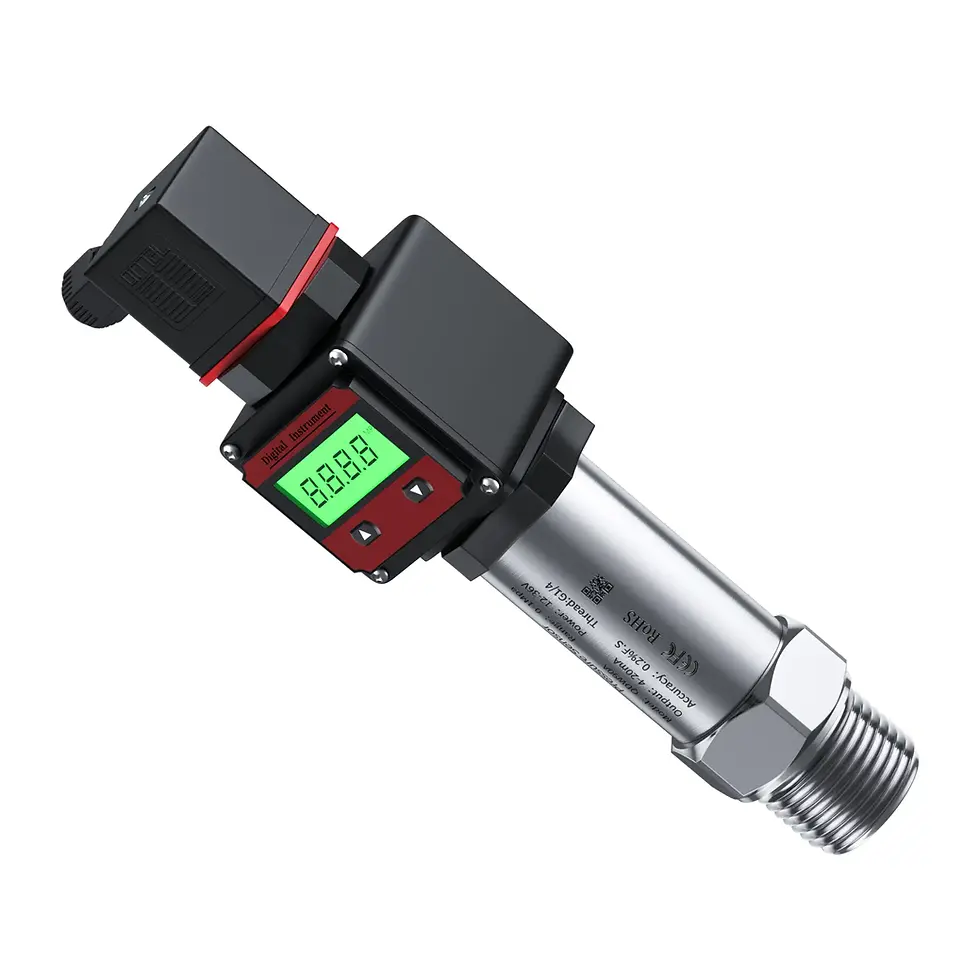

Digital Pressure Transmitter – 4–20mA RS485 Multi-Output with LCD Display

Digital Pressure Transmitter – 4–20mA RS485 Multi-Output with LCD Display

SKU: PSI-73108CB4AB744CB3
A$198.00Price

High-performance pressure measurement for industrial applications. This digital pressure transmitter offers wide range capability, multiple output signals, and a clear LCD display for real-time monitoring.

Select
RS485 Output
1-5V Output
0-5V Output
4-20MA Output
0-10V Output
Measuring Range
0-2bar
0-1.5bar
0-8bar
0-5bar
Other
-0.1-1Mpa
0-1bar
-0.1-1bar
0-60Mpa
0-50Mpa
-0.1-0.1Mpa
-0.1-0Mpa
0-20Mpa
0-10Mpa
0-40Mpa
0-30Mpa
0-1Mpa
0-0.6Mpa
0-2.5Mpa
0-1.6Mpa
Quantity

This digital pressure transmitter is designed for accurate measurement of pressure in industrial systems, supporting a wide range of applications including water, hydraulic systems, compressed air, and process control.

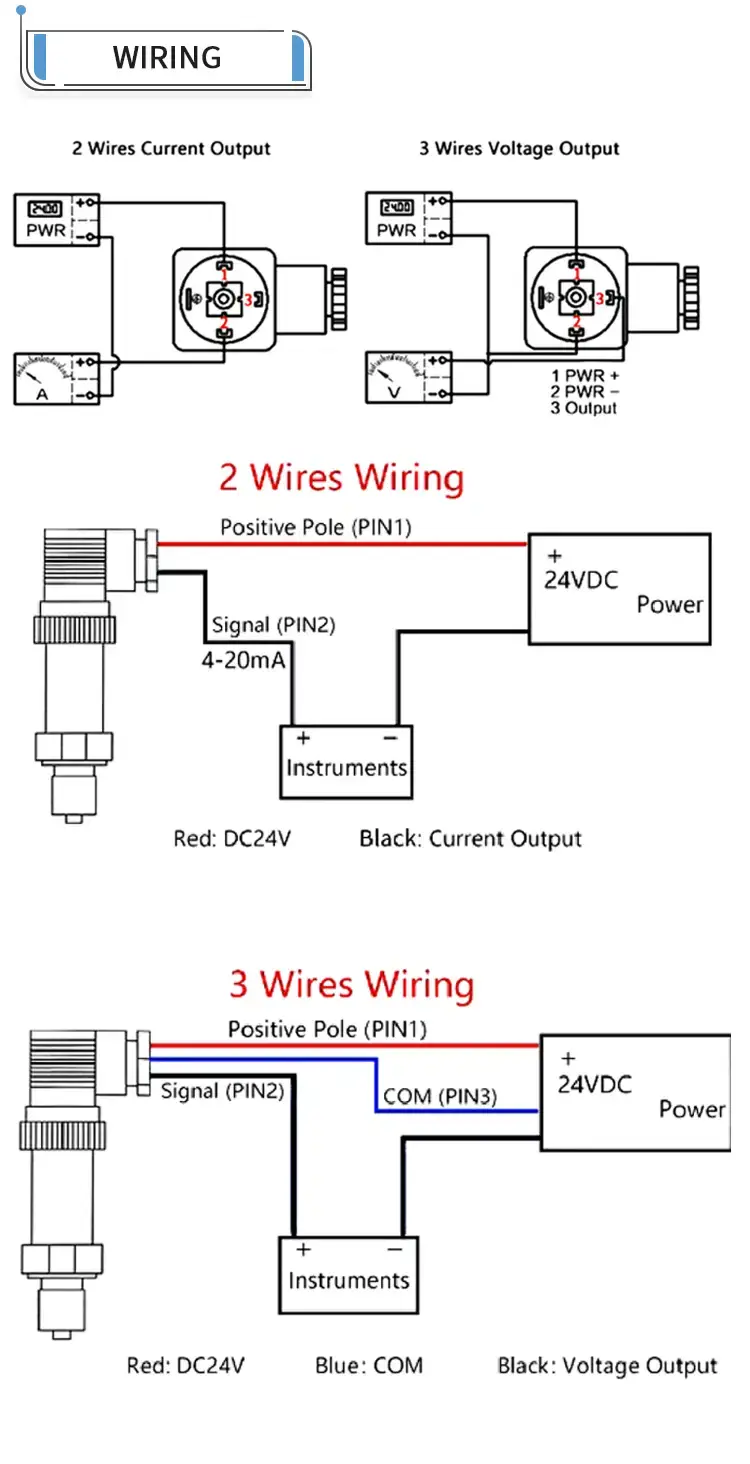

Equipped with an integrated LCD display, the transmitter provides real-time pressure readings for easy on-site monitoring. It supports multiple output signals including analog (4–20 mA, 0–10 V) and digital (RS485), allowing seamless integration with PLCs, SCADA systems, and industrial control platforms.

The transmitter is available in various pressure ranges, from low-pressure applications up to high-pressure systems, making it suitable for diverse industrial environments. It supports multiple pressure types including gauge, absolute, and sealed pressure configurations.

With a robust IP65-rated enclosure and flexible thread connection options, the unit is designed for reliable operation in demanding conditions. It is ideal for installation in pipelines, tanks, hydraulic systems, and process equipment.
