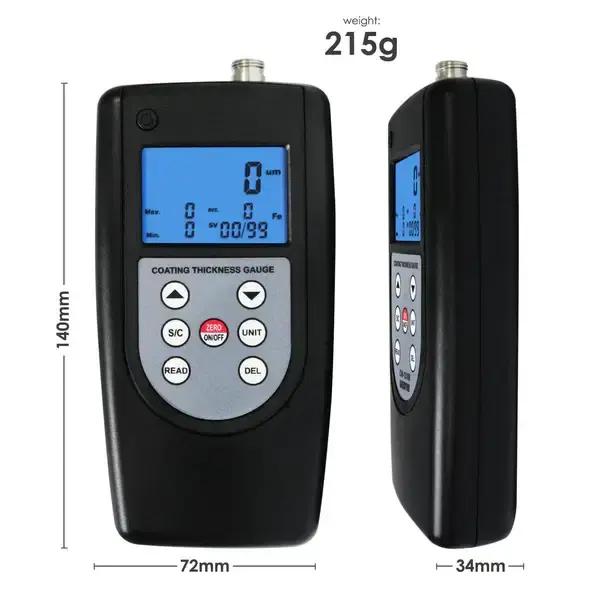

Coating Thickness Meter Gauge
SKU: CM-1210B
$746.00 Regular Price
$671.40Sale Price
Coating Thickness Meter Gauge F & NF 99 Memories Max Min Avg, Magnetic Induction Eddy Current 0~2000μm 0~80mil
Set Includes:
- 1 x Coating Thickness Gauge (main unit)
- 1 x Probe (F & NF Type)
- 1 x Calibration Base (F)
- 1 x Calibration Base (NF)
- 5 x Calibration Foils
- English Operation Manual
- Carrying Case
Product Description
Specifications
Coating thickness gauge is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry.
Principles:
- F Type Magnetic Induction (Iron Base)
- Applications: Measure the thickness of non-magnetic materials on magnetic materials
- Examples: Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
- NF Type Eddy Current (Aluminium Base)
- Applications: Measure the thickness of non-conductive coatings on non-magnetic metals
- Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc
Features:
- Can store the new data in 99 groups
- Calculates and displays a statistical analysis of readings (Max, Min, Avg)
- Magnetic induction (F) and eddy current (N) measuring methods
- Metric / imperial system selectable
- Auto memory of calibration value, auto substrate recognition
- Single and Continuous measurement mode
- Use Bluetooth or USB/RS-232 data output to connect with PC (Optional accessories, not included)
- Low battery indicator
- Manual or automatic power off
- Meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS
