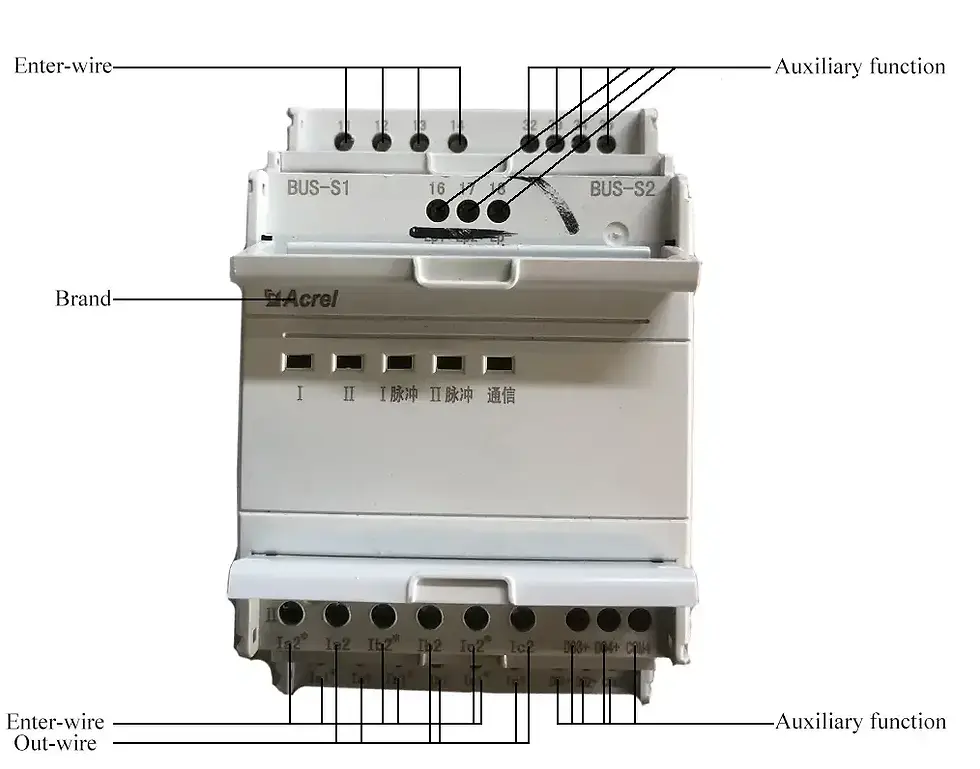

ACREL Multi-Channel Energy Monitoring Meter
ACREL Multi-Channel Energy Monitoring Meter is a DIN rail-mounted multi-circuit energy meter for centralised monitoring of multiple single-phase and three-phase electrical circuits. It supports up to 36 single-phase direct-input circuits or 12 three-phase circuits, with options for direct connection and CT input. RS485 Modbus RTU communication enables measured data to be connected to compatible energy monitoring and management systems.
The ACREL Multi-Channel Energy Monitoring Meter is designed for applications where several electrical circuits need to be measured from a centralised metering arrangement. Its modular configuration supports up to 36 single-phase direct-access circuits or up to 12 three-phase circuits, with CT-based measurement also available for three-phase circuits.
The meter provides measurement of important electrical parameters including voltage, current, frequency, active power, reactive power, apparent power, power factor and energy. Depending on the configuration, it can also provide harmonic and three-phase unbalance measurements.
Communication is provided through RS485 with Modbus RTU, while other interfaces and communication options are available on applicable configurations. This allows the ACREL Multi-Channel Energy Monitoring Meter to be incorporated into compatible energy management and electrical monitoring systems.
How it works
- The ACREL Multi-Channel Energy Monitoring Meter uses a modular arrangement to measure multiple electrical circuits through direct connection or CT-based inputs.
- It measures electrical parameters such as voltage, current, power, power factor, frequency and energy.
- Measured information can be communicated through the RS485 interface using Modbus RTU.
- The system can be configured for single-phase, three-phase or mixed circuit monitoring, depending on the selected modules.
Why choose this product
- Centralises measurement of multiple electrical circuits in one metering arrangement.
- Supports different circuit configurations to suit varying electrical distribution requirements.
- Provides RS485 Modbus RTU communication for connection to compatible monitoring systems.
- DIN rail installation allows the meter to be incorporated into suitable electrical control and distribution equipment.
- Suitable where multiple circuits need to be monitored without installing a separate energy meter for every circuit.
Benefits
- Multi-circuit electrical measurement
- Centralised energy monitoring
- Flexible direct-input and CT measurement options
- Digital communication for system integration
- Measurement of electrical energy and operating parameters
- Modular configuration for different circuit requirements
