ACREL 170 x 100ii Current Transformer for Electrical Monitoring

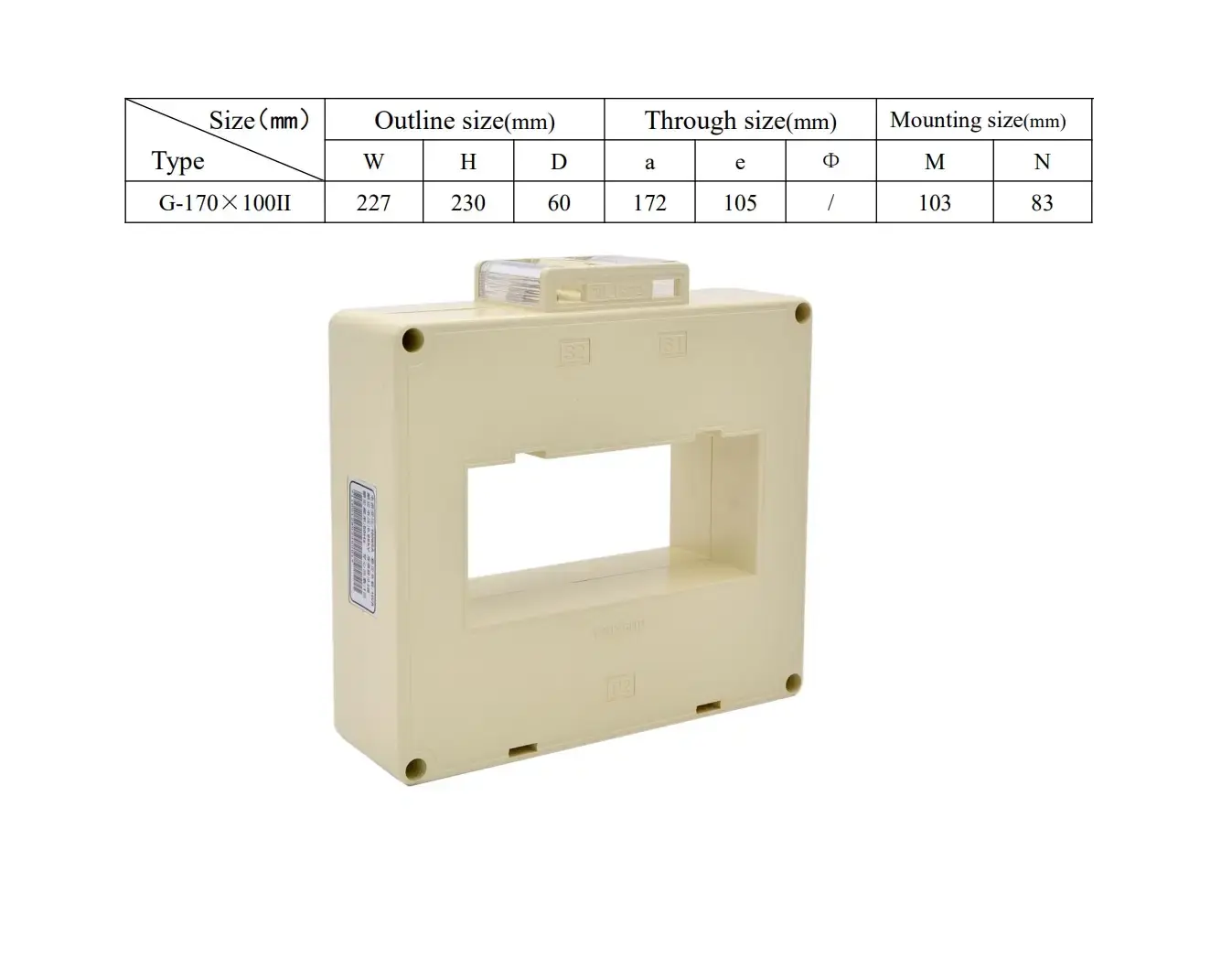

ACREL 170 x 100ii Current Transformer for Electrical Monitoring is a closed type current transformer for measuring high AC currents in electrical systems. It features a large square through opening suitable for busbars and multiple cables, with current ratios covering 1500 to 2000 A and 2500 to 5000 A. The transformer is designed for connection to electrical measuring instruments and is rated for 0.66 kV operation.
The ACREL 170 x 100ii Current Transformer for Electrical Monitoring current transformer is designed to convert high AC current into a lower secondary current suitable for electrical measuring instruments. The closed horizontal square hole design allows the primary conductor to pass through the transformer without requiring the conductor to be disconnected for installation.
The 170 x 100II configuration has a large through opening and can accommodate the specified busbar arrangements or multiple cables. It is suited to electrical equipment where current measurement is required at higher current levels.
How It Works
- The primary busbar or cable passes through the current transformer opening.
- Current flowing through the primary conductor produces a magnetic field within the transformer.
- The transformer produces a proportional secondary current for connection to compatible measuring equipment.
- Available ratios allow the transformer to be matched to the required primary current range.
Why Choose This Product
- Designed specifically for high current measurement applications.
- Large 170 x 100 configuration provides a substantial through opening.
- Supports primary current ratios from 1500 A to 5000 A.
- Suitable for use with electrical measuring instruments.
- Closed construction provides a fixed installation format for electrical equipment.
Benefits
- Enables high AC currents to be measured using compatible measuring equipment.
- Provides multiple current ratio options for different measurement requirements.
- Accommodates the specified busbar and cable arrangements.
- Suitable for integration into electrical equipment and measurement systems.
