SPECIFICATIONS

Brand Name: NONE
High-concerned chemical: None
Model Number: CWT-TM-8PT
Origin: Mainland China




8 channels PT100/PT1000  Rs485 Modbus Output Temperature Acquisition Module

Basic parameters

Terminal description



PT100/PT1000 wiring

RS485 communication (Modbus RTU protocol)
Default parameters: 9600,n,8,1
Default device address is 1
Modbus register map
1.Parameter register map
Function code: 03H (read), 06H(write)

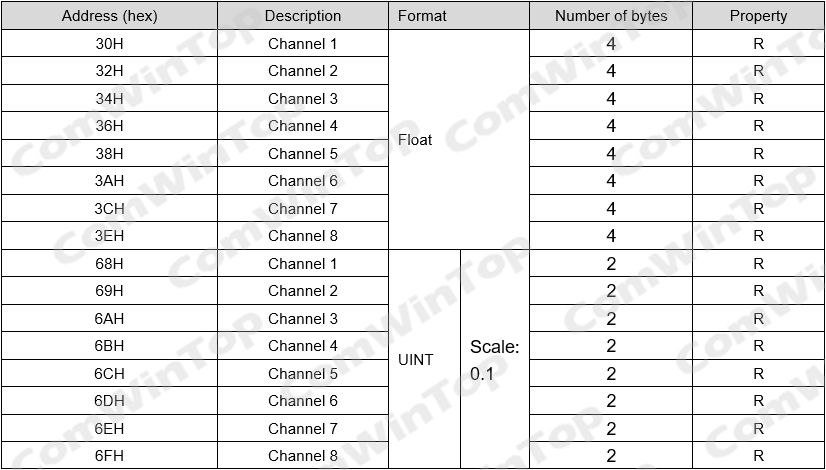

2.Data register map
Function code: 03H (read)
