SPECIFICATIONS

Brand Name: NONE
High-concerned chemical: None
Model Number: CWT-TM-16TC
Origin: Mainland China




16 channels K-type thermocouple Rs485 Modbus Output Temperature Acquisition Module

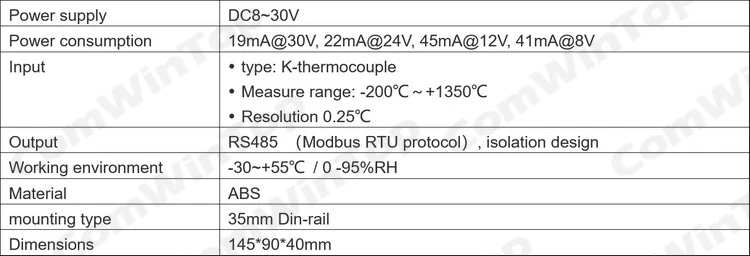

Basic parameters


Terminal description

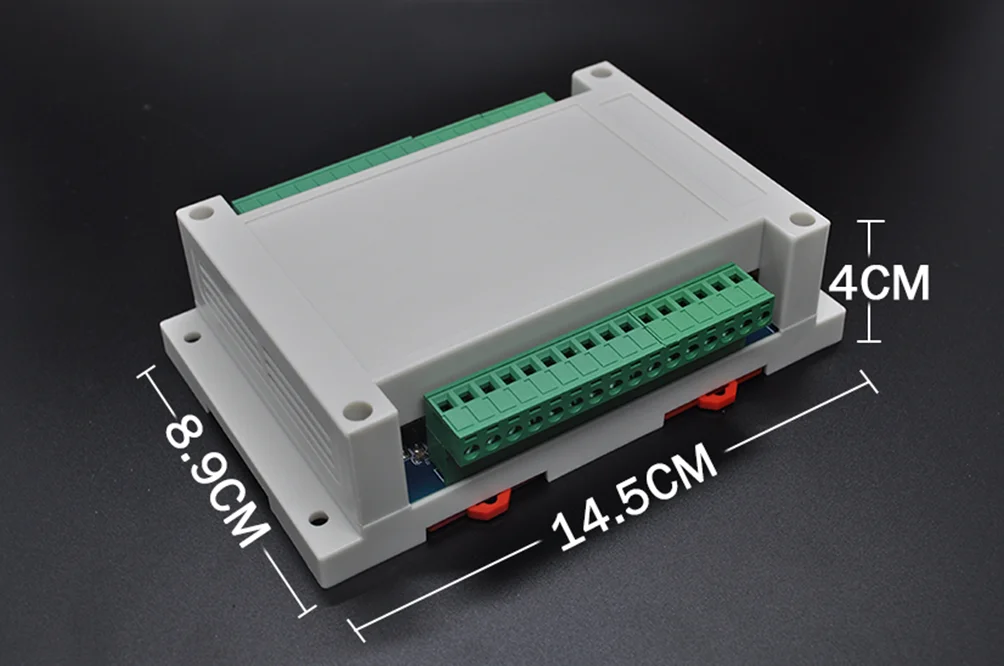

Size


RS485 communication (Modbus RTU protocol)
Default parameters: 9600,n,8,1
Default device address is 1
Modbus register map
1.Parameter register map
Function code: 03H (read), 06H (write)

2.Data register map
Function code: 03H (read)
